Diagnostic Test

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  FUEL PUMP OPERATION

    Ignition on, engine not running.

    With a scan tool in the Powertrain Actuators, actuate the Fuel Pump.

    Is the Fuel Pump operating?

    Yes

    1. Refer to the INTERMITTENT CONDITION diagnostic procedure.
    2. Perform the POWERTRAIN VERIFICATION TEST. (Refer to STANDARD PROCEDURE - POWERTRAIN VERIFICATION TEST) .

    No

    1. Go To  2).
  2. 2)  FUEL PUMP CONTROL OPERATION FROM THE TIPM
    Fig 1: CHECKING FUEL PUMP CONTROL
    GC0041940Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the TIPM C2 harness connector.

    Turn the ignition on.

    Using the scan tool in the Powertrain Actuators, actuate the Fuel Pump.

    With a 12-volt test light connected to ground, probe the Fuel Pump Control circuit in the TIPM C2 harness connector.

    Does the test light illuminate brightly and flash on and off?

    Yes

      NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
    1. If OK, replace the TIPM in accordance with the Service Information.
    2. Perform the POWERTRAIN VERIFICATION TEST. (Refer to STANDARD PROCEDURE - POWERTRAIN VERIFICATION TEST) .

    No

    1. Go To  3).
  3. 3)  (K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO GROUND

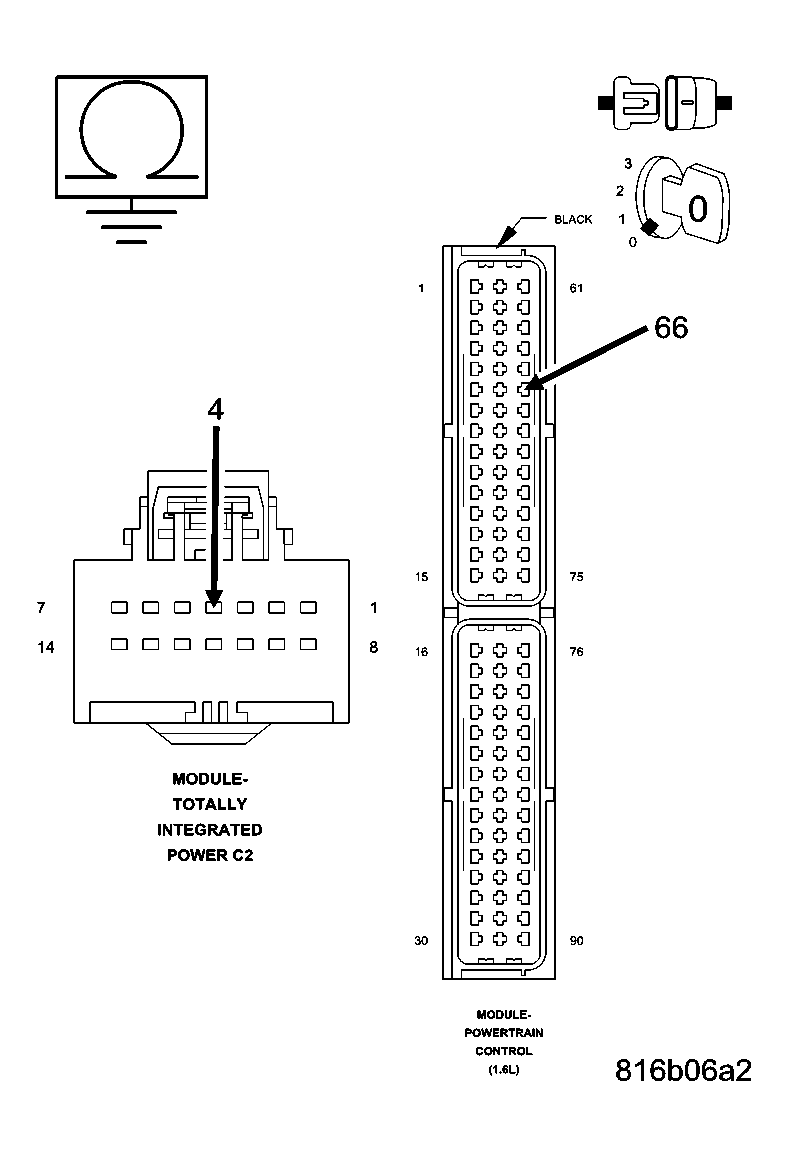

    Fig 2: MEASURING RESISTANCE BETWEEN GROUND AND THE FUEL PUMP CONTROL CIRCUIT
    GC0041941Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the PCM harness connector.

    Measure the resistance between ground and the (K31) Fuel Pump Control circuit in the TIPM C2 harness connector and the PCM harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (K31) Fuel Pump Control circuit.
    2. Perform the POWERTRAIN VERIFICATION TEST. (Refer to STANDARD PROCEDURE - POWERTRAIN VERIFICATION TEST) .

    No

    1. Go To  4).
  4. 4)  PCM
    NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform the POWERTRAIN VERIFICATION TEST. (Refer to STANDARD PROCEDURE - POWERTRAIN VERIFICATION TEST) .

    No

    1. Replace and program the Powertrain Control Module in accordance with the Service Information. (Refer to STANDARD PROCEDURE - PCM/ECM/SKREEM PROGRAMMING) .
    2. Perform the POWERTRAIN VERIFICATION TEST. (Refer to STANDARD PROCEDURE - POWERTRAIN VERIFICATION TEST) .
