SENSOR, Camshaft Position: Removal: 2.7L

Fig 1: 2.7L CAM POSITION SENSOR
GC0080079Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Unlock and disconnect electrical connector.

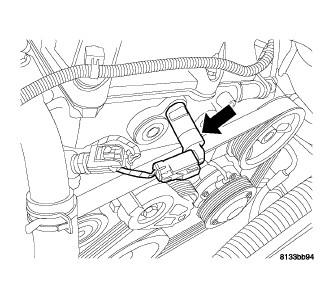

    Fig 2: REMOVING/INSTALLING 2.7L CAM POSITION SENSOR
    GC0080080Courtesy of CHRYSLER LLC
  3. Remove mounting bolt.
  4. Remove sensor.
