VALVE, Positive Crankcase Ventilation (PCV): Removal: 6.1L

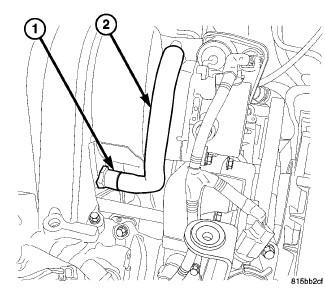

Fig 1: PCV VALVE - 6.1L

Courtesy of CHRYSLER LLC

The PCV valve (1) is threaded into the right-front corner of the intake manifold.

1. Remove rubber hose (2) from PCV valve.
2. Unscrew PCV valve (1) from intake manifold.
