VALVE, Positive Crankcase Ventilation (PCV), Diesel: Removal: 3.0L

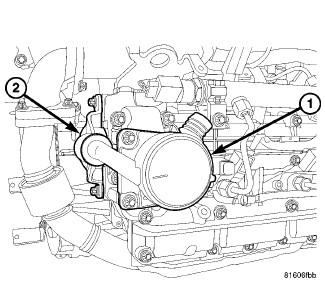

Fig 1: PCV Oil Separator

Courtesy of CHRYSLER LLC

1 - OIL SEPARATOR HOUSING

2 - OIL SEPARATOR HOUSING ADAPTOR

1. Disconnect negative battery cable.
2. Remove the engine cover.
3. Remove air cleaner assyembly.
4. Remove hose to vapor control valve (1).
   NOTE: Inspect the oil drain back access hole in the cylinder head cover to assure that it is free of obstruction.
5. Remove the oil separator fasteners and oil separator.
