Diagnostic Test

CHECKING DTCS
NOTE:
- Before continuing with this procedure, review the TSBs that may be related to a start and stall condition.
- It may be helpful to review Secondary Indicators, if a two trip DTC(s) is present, drive the vehicle to try and mature the DTC to Active.
1. Ignition on, engine not running.
2. With a scan tool, read DTCs.
  Are any DTCs present?

  Yes
  - Perform the appropriate diagnostic procedures.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 2
CHECKING VEHICLE THEFT DTCS
NOTE: If you are unable to communicate with the Wireless Ignition Node (WIN). Refer to Non-DTC Diagnostics/Communication - Diagnosis and Testing .
1. With the scan tool, read the WIN codes.
  Are there any WIN DTCs?

  Yes
  - Refer to DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go to step 3

CAM/CRANK VERIFICATION

Using a scan tool, under OBDII Monitors, read and record the Cam Crank Synchronization Event Monitors.
Using this table, determine if any of the values are present in the Cam Crank Synchronization Event Monitor display.

CAM EVENT STATUS
CM1ULTRH	CM1ULTLH	CM1TOL1	CM1LOW	CM1ULZERO	CM1MFS	CM1MFR
CM1IF	CM1ONLY	CM2ULTRH	CM2ULTLH	CM2TOL1	CM2LOW	CM2ULZERO
CM2MFS	CM2MFR	CM2IF	CM2ONLY	CM3ULTRH	CM3ULTLH	CM3TOL1
CM3LOW	CM3ULZERO	CM3MFS	CM3MFR	CM3IF	CM3ONLY	CM4ULTRH
CM4ULTLH	CM4TOL1	CM4LOW	CM4ULZERO	CM4MFS	CM4MFR	CM4IF
CM4ONLY	SYULCAM	-	-	-	-	-
CRANK EVENT STATUS
CKULTRH	CKULTLH	CKLOW	CKUL60M2	CKMFS	CKMFR	CK1IF
CKULGTRH	CKULGTLH	CKULGTVR	CKULGTVL	CKUL220	CKUL40	SYULCRK
SYNOCLCK	-	-	-	-	-	-
SYNC EVENT STATUS
SYULTOL	SYTOLF	-	-	-	-	-

SPARK PLUG(S)
NOTE: Inspect the ignition coil for damage, carbon tracking on the coil or a damaged spark plug insulator boot. If a problem is found, replace the ignition coil.
1. Turn the ignition off.
2. Remove the spark plug.
3. Inspect the spark plug for any of the following conditions:
  - Cracks or damage
  - Carbon tracking
  - Foreign material
  - Gap not within specification
  - Loose or broken electrode
  NOTE: Lightly tap the bottom of the spark plug on a solid surface. The electrode in the spark plug should not move.

  Were any problems found?

  Yes
  - Replace the spark plug.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
POSSIBLE CAUSES OF START AND STALL CONDITION
The following items should be checked as a possible cause for a start and stall condition:
- Perform any Technical Service Bulletins (TSBs) that may apply to the symptom.
- The exhaust system must be free of any restrictions.
- The engine compression must be within specifications.
- The engine valve timing must be within specifications.
- The engine must be free from vacuum leaks.
- The throttle body must be free of carbon buildup and dirt.
- Cracked spark plugs, carbon track on spark plugs, coil and coil boot.
Do any of the above conditions exist?

Yes
- Repair as necessary.
- Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
No
- Go to step 6
FUEL PUMP DELIVERY
1. Verify that the Fuel tank is not empty before continuing.
2. Follow the diagnostics for Checking Fuel Delivery in this information. See Non-DTC Diagnostics/Drivability - Gas - Diagnosis and Testing .
  Was the No Start condition solved after following the above diagnostic test?

  Yes
  - Test Complete.
  No
  - Check for contamination/water in the fuel. Make sure the fuel being used in this vehicle meets OEM Fuel Requirement.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
5-VOLT SUPPLY CIRCUIT VOLTAGE (CMP)
1. Turn the ignition off.
2. Disconnect the Camshaft Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of between the Sensor Ground circuit and the 5-volt Supply circuit in the Camshaft Position Sensor harness connector.
  Is the voltage 5.0 volts?

  Yes
  - Go to step 8
  No
  - Repair the 5-volt Supply.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
SENSOR GROUND CIRCUIT TEST
1. Turn the ignition off.
2. Using a 12-volt test light connected to 12 volts, probe the Sensor Ground circuit in the Camshaft Position Sensor harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go to step 9
  No
  - Repair the Ground Circuit.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CMP SIGNAL
1. Turn the ignition on.
2. Measure the voltage of the CMP Signal circuit in the Camshaft Position Sensor harness connector.
  Is the voltage between 4.7 and 5.0 volts?

  Yes
  - Go to step 13
  No
  - Go to step 10
CMP SIGNAL CIRCUIT SHORTED TO VOLTAGE
1. Turn the ignition off.
2. Disconnect the C2 Powertrain Control Module harness connector.
3. Turn the ignition on.
4. Measure the voltage of the CMP Signal circuit in the Camshaft Position Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the CMP Signal circuit for a short to voltage.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 11
CMP SIGNAL CIRCUIT SHORTED TO GROUND
1. Turn the ignition off.
2. Measure the resistance between ground and the CMP Signal circuit in the Camshaft Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 12
  No
  - Repair the CMP Signal circuit for a short to ground.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CMP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
1. Measure the resistance of the CMP Signal circuit between the Camshaft Position Sensor harness connector and the appropriate terminal of PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 24
  No
  - Repair the CMP Signal circuit for an open circuit or high resistance.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CAMSHAFT POSITION SENSOR SIGNAL

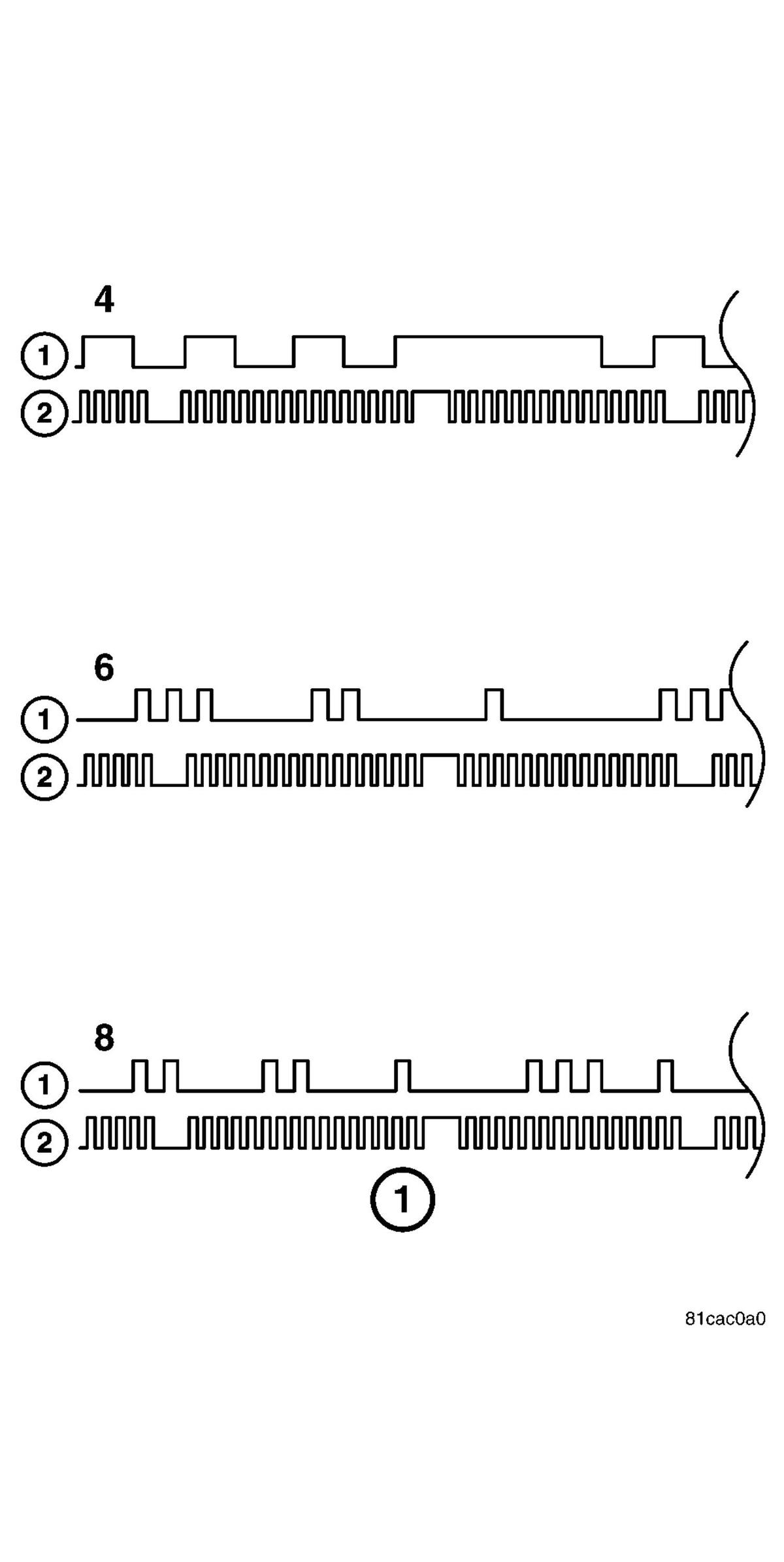

Fig 1: Cam/Crank Position Sensors Signals - Wave Forms
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. The above illustration is a depiction of typical scope patterns of the Cam (1) and Crank (2) sensors for 4, 6, and 8 cylinder engines. The square wave patterns are uniform and are identical to one another. The patterns must be evenly spread apart and at the same height. The larger gap pattern (signature) after the shorter wave forms are used for cylinder identification (Crank signal) and the distance between the series of slots (trigger) on the camshaft pulley (cam signal). Any variation of the pattern will indicate an issue with the sensor, wiring, or trigger (target) wheel.

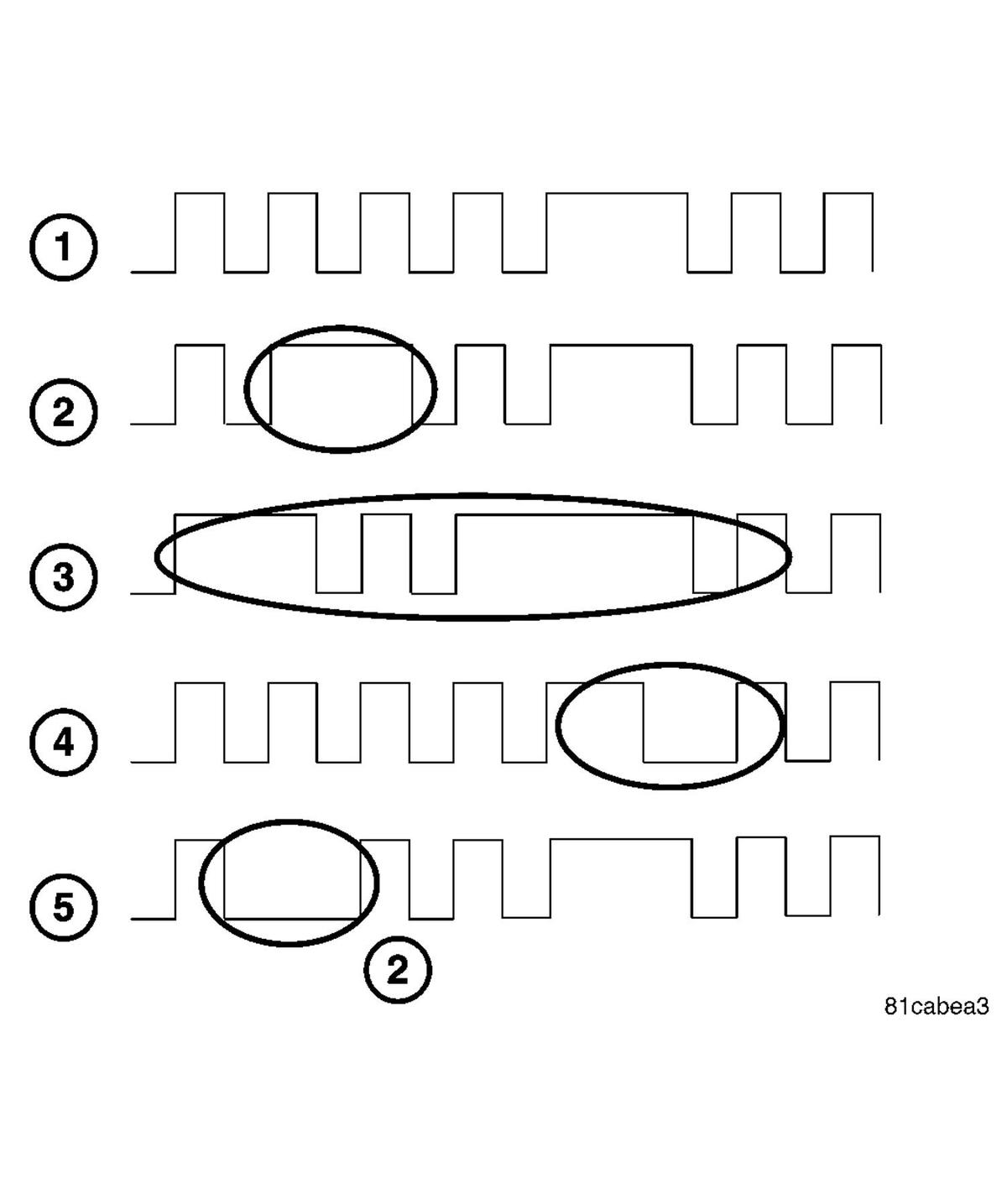

  Fig 2: Description Of Good & Bad Cam/Crank Signal Wave Forms
  Courtesy of CHRYSLER LLC

  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 along with the Adapter 8815-1 to perform the diagnosis.
3. With a lab scope, probe the CMP Signal circuit in the appropriate terminal of the PCM Pinout Box 8815.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.
4. Start and allow the engine to run.
5. Observe the lab scope screen.
6. Compare the scope pattern with the ones in Figure 2.
  1. Pattern indicates a clean (good) square wave form that is identical to what the cam and crank should be. The square wave patterns are uniformed and are identical to one another.
  2. Two pulses joined together in the same spot on target. Indicates damage to the target (trigger) on the flex plate or broke tooth, runout in the target or large air gap between the sensor and the target wheel.
  3. Wide air gap or intermittent connection.
  4. Early signature, predominately at high speed. Large air gap between the sensor and the target wheel.
  5. Missed pulse. Possible burr or light damage to target or incorrect lateral position of the crank sensor to target (trigger).
  NOTE: If any of the above (except pattern 1) is displayed on the lab scope repair as necessary.

  Was the square wave found to match any of the above except pattern 1?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Camshaft Position Sensors.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
5-VOLT SUPPLY CIRCUIT VOLTAGE (CKP)
1. Turn the ignition off.
2. Disconnect the Crankshaft Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of the 5-volt Supply circuit in the Crankshaft Position Sensor harness connector.
  Is the voltage 5.0 volts?

  Yes
  - Go to step 15
  No
  - Repair the 5-volt Supply.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
SENSOR GROUND CIRCUIT TEST
1. Turn the ignition off.
2. Using a 12-volt test light connected to 12 volts, check the Sensor Ground circuit in the Crankshaft Position Sensor harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go to step 16
  No
  - Repair the Ground Circuit.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CKP SIGNAL
1. Turn the ignition on.
2. Measure the voltage of the CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is the voltage between 4.7 and 5.0 volts?

  Yes
  - Go to step 20
  No
  - Go to step 17
CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the CKP Signal circuit for a short to voltage.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 18
CKP SIGNAL CIRCUIT SHORTED TO GROUND
1. Turn the ignition off.
2. Measure the resistance between ground and the CKP Signal circuit in the Crankshaft Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 19
  No
  - Repair the CMP Signal circuit for a short to ground.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CKP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
1. Measure the resistance of the CKP Signal circuit between the Camshaft Position Sensor harness connector and the appropriate terminal of PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 24
  No
  - Repair the CMP Signal circuit for an open circuit or high resistance.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CRANKSHAFT POSITION SENSOR SIGNAL

Fig 3: Cam/Crank Position Sensors Signals - Wave Forms
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. The above illustration is a depiction of typical scope patterns of the Cam (1) and Crank (2) sensors for 4, 6, and 8 cylinder engines. The square wave patterns are uniform and are identical to one another. The patterns must be evenly spread apart and at the same height. The larger gap pattern (signature) after the shorter wave forms are used for cylinder identification (Crank signal) and the distance between the series of slots (trigger) on the camshaft pulley (cam signal). Any variation of the pattern will indicate an issue with the sensor, wiring, and trigger (target) wheel.

  Fig 4: Description Of Good & Bad Cam/Crank Signal Wave Forms
  Courtesy of CHRYSLER LLC

  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 along with the Adapter 8815-1 to perform the diagnosis.
3. With a lab scope, probe the CKP Signal circuit in the appropriate terminal of the PCM Pinout Box 8815.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.
4. Start and allow the engine to run.
5. Observe the lab scope screen.
6. Compare the scope pattern with the ones in Fig 4.
  1. Pattern indicates a clean (good) square wave form that is identical to what the cam and crank should be. The square wave patterns are uniformed and are identical to one another.
  2. Two pulses joined together in the same spot on target. Indicates damage to the target (trigger) on the flex plate or broke tooth, runout in the target or large air gap between the sensor and the target wheel.
  3. Wide air gap or intermittent connection.
  4. Early signature, predominately at high speed. Large air gap between the sensor and the target wheel.
  5. Missed pulse. Possible burr or light damage to target or incorrect lateral position of the crank sensor to target (trigger).
  NOTE: If any of the above (except pattern 1) is displayed on the lab scope repair as necessary.

  Was the square wave found to match any of the above except pattern 1?

  Yes
  - Repair as necessary.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Crankshaft Position Sensor.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
VALVE TIMING
1. Make sure the valve timing is within specification. Refer to the appropriate diagnostic procedure.
  Was the valve timing within specification?

  Yes
  - Go to step 22
  No
  - Repair as necessary.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
5-VOLT SUPPLY CIRCUIT VOLTAGE (CMP/CKP)
NOTE: The 5-volt Supply circuit must be present at both CMP and CKP Sensors.
1. Turn the ignition off.
2. Disconnect the Camshaft Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of the 5-volt Supply circuit in the Camshaft Position Sensor harness connector.
5. Repeat the above test at the Crankshaft Position Sensor (Crankshaft Position Sensor harness connector measure).
  Is the voltage 5.0 volts at each sensor?

  Yes
  - Go to step 23
  No
  - Repair the 5-volt Supply circuit(s) as necessary.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
SENSOR GROUND CIRCUIT
NOTE: The Ground circuit must be present at both CMP and CKP Sensors.
1. Turn the ignition off.
2. Using a 12-volt test light connected to 12 volts, probe the Sensor Ground circuit in the Camshaft Position Sensor harness connector.
3. Repeat the above test at the Crankshaft Position Sensor (Crankshaft Position Sensor harness connector measure).
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Replace both the Camshaft Position Sensor and Crankshaft Position Sensor in accordance with the Service Information.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Repair the Ground Circuit(s) as necessary.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
    NOTE: A battery disconnect must be performed to clear the Cam Crank Synchronization Events.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
