Checking The Cooling Fan Performance: Notes

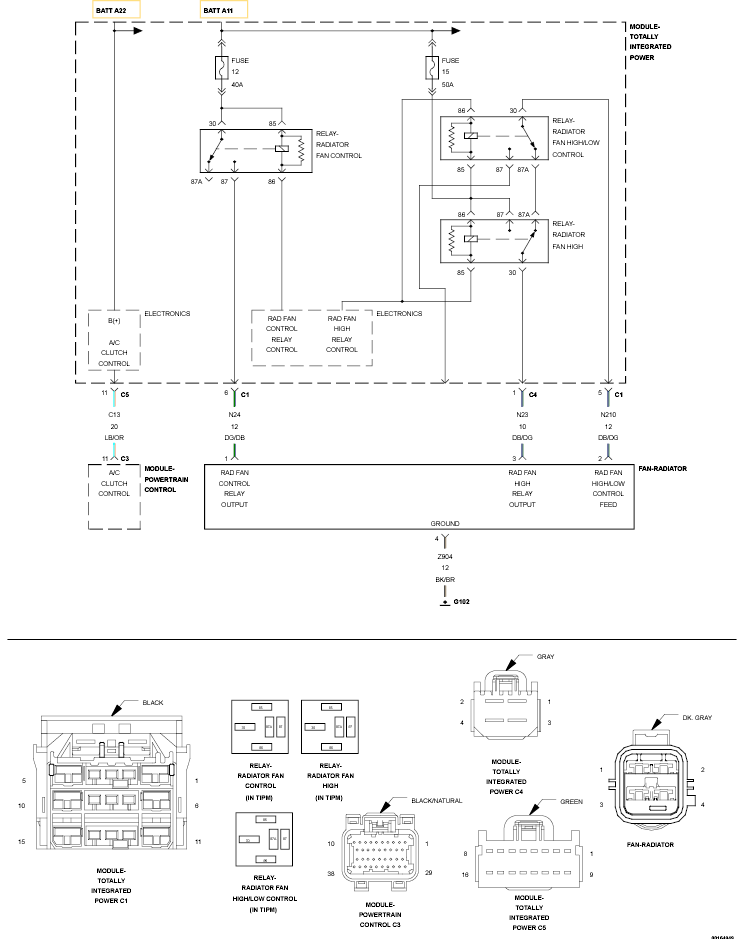

Fig 1: Cooling Fan Control - Circuit Shematic
GC0098261Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to:
