Checking The Ignition Coil Performance - 5.7/SRT8: Notes

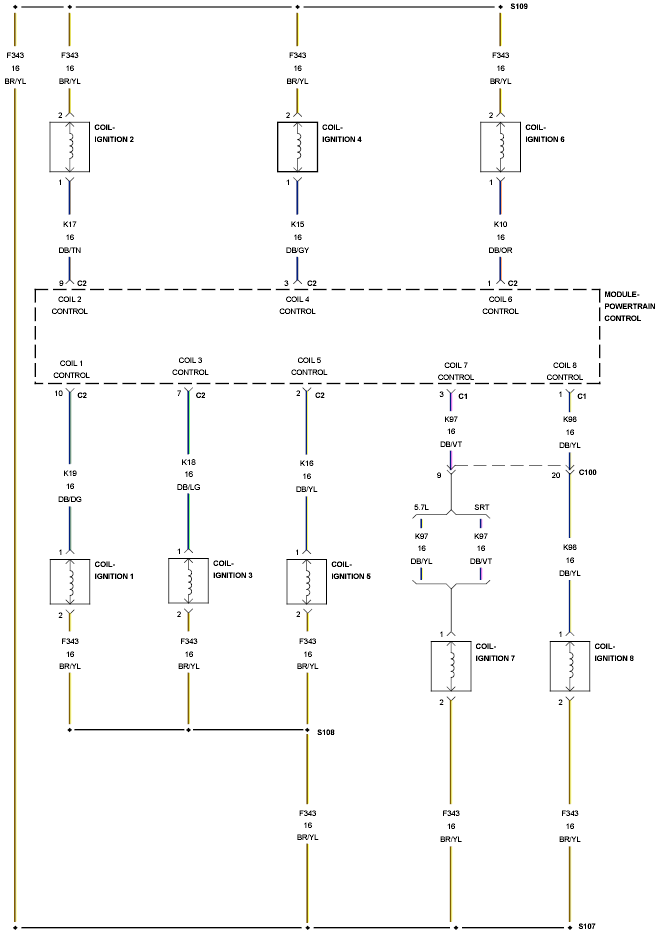

Fig 1: Ignition Coil - Circuit Schematic (5.7L/SRT8)

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to:

• SYSTEM WIRING DIAGRAMS for 300.
• SYSTEM WIRING DIAGRAMS for Charger.
