Checking The Ignition Coil Performance - 2.7/3.5: Notes

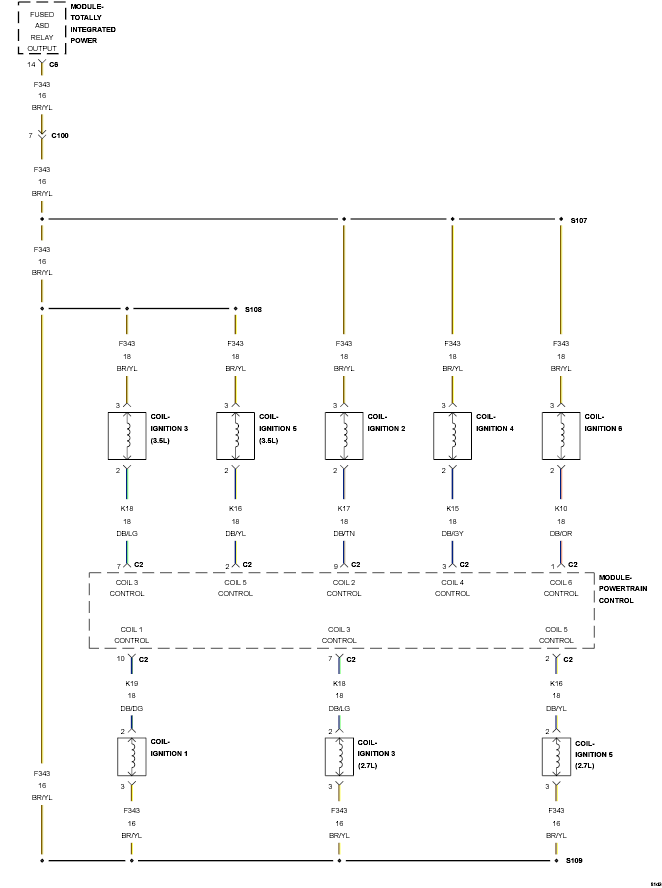

Fig 1: Ignition Coil - Circuit Schematic (2.7L/3.5L)

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to:

• SYSTEM WIRING DIAGRAMS for 300.
• SYSTEM WIRING DIAGRAMS for Charger.
