VALVE, Manifold Tuning: Removal: 3.5L

Fig 1: Manifold Tuning Valve And Short Runner Valve

Courtesy of CHRYSLER LLC

1 - Manifold Tuning Valve

2 - Short Runner Valve

Manifold Tuning Valve location.

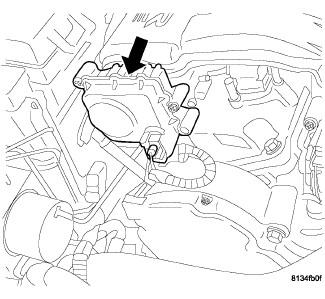

Fig 2: Manifold Tuning Valve Location
Courtesy of CHRYSLER LLC
Disconnect negative battery cable.

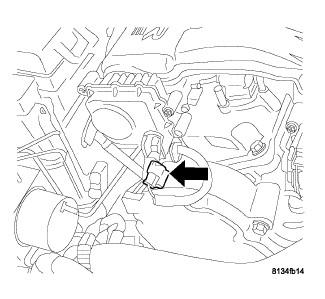

Fig 3: Manifold Tuning Valve Electrical Connector
Courtesy of CHRYSLER LLC
Remove the electrical connector.
Remove the 2 mounting bolts.

Fig 4: Removing/Installing Manifold Tuning Valve
Courtesy of CHRYSLER LLC
Remove the Manifold Tuning Valve.
