VALVE, Manifold Tuning: Removal: 2.7L

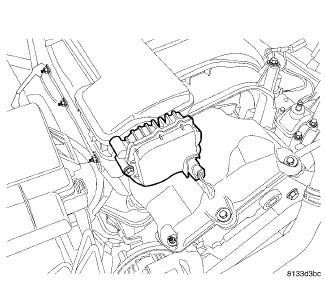

Fig 1: Manifold Tuning Valve
GC0080480Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Unlock and remove the electrical connector.
  3. Remove the 2 mounting bolts.
    Fig 2: Removing/Installing Short Runner Valve
    GC0080481Courtesy of CHRYSLER LLC
  4. Remove the Short Runner Valve.
