SENSOR, Manifold Air Pressure (MAP): Removal: 5.7L

Fig 1: Locating Manifold Air Pressure (MAP) Sensor - 5.7L

Courtesy of CHRYSLER LLC

The Manifold Absolute Pressure (MAP) sensor (3) is mounted into the top/rear of the intake manifold (4) near the cowl/hood seal (1).

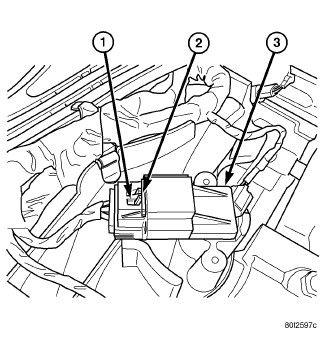

Fig 2: Removing/Installing MAP Sensor - 5.7L

Courtesy of CHRYSLER LLC

1. Disconnect electrical connector at sensor by sliding release lock out (1). Press down on lock tab (2) for removal.
2. Rotate sensor 1/4 turn counter-clockwise for removal.
3. Check condition of sensor o-ring.
