SENSOR, Manifold Air Pressure (MAP): Removal: 3.5L

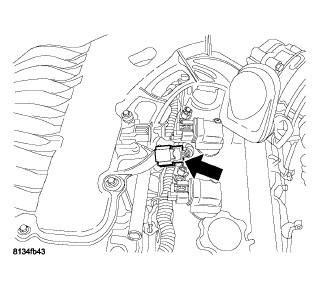

Fig 1: Locating Manifold Air Pressure (MAP) Sensor

Courtesy of CHRYSLER LLC

1. Sensor location.
2. Disconnect negative battery cable.

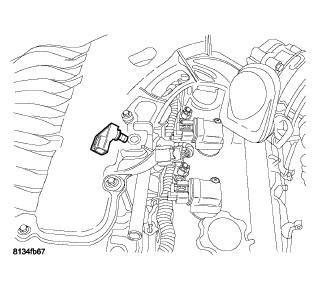

   Fig 2: MAP Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
3. Unlock the electrical connector.

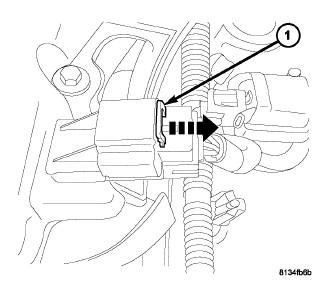

   Fig 3: Disconnecting/Connecting MAP Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
4. Disconnect the electrical connector.

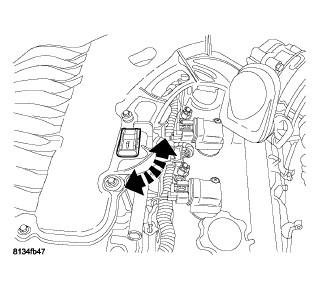

   Fig 4: Rotating MAP Sensor 1/4 Turn Clockwise

   Courtesy of CHRYSLER LLC
5. Rotate sensor 1/4 turn clockwise.
6. Pull up on sensor.
   Fig 5: Removing/Installing MAP Sensor

   Courtesy of CHRYSLER LLC
7. Remove sensor.
