SENSOR, Manifold Air Pressure (MAP): Removal: 2.7L

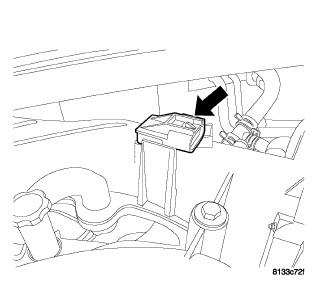

Fig 1: Locating Manifold Air Pressure (MAP) Sensor

Courtesy of CHRYSLER LLC

1. Sensor location.
2. Unlock the electrical connector.

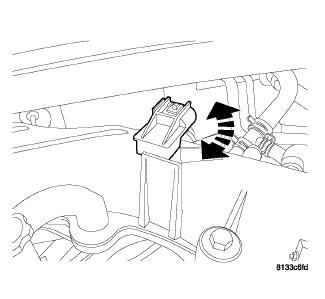

   Fig 2: MAP Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
3. Remove electrical connector.

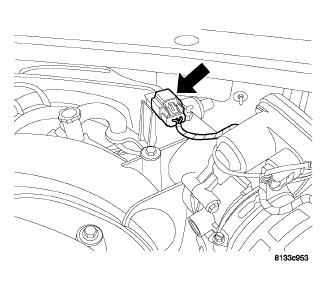

   Fig 3: Removing/Installing MAP Sensor

   Courtesy of CHRYSLER LLC
4. Turn sensor 1/4 turn counterclockwise.
5. Pull sensor straight up.
   Fig 4: MAP Sensor And O-Ring

   Courtesy of CHRYSLER LLC
6. Remove sensor.
7. Inspect o-ring.
