SENSOR, Manifold Air Pressure (MAP): Installation: 5.7L

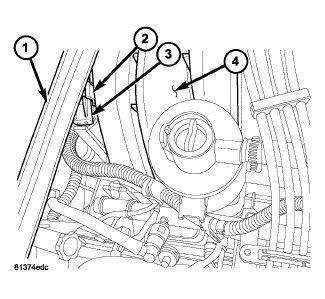

Fig 1: Locating Manifold Air Pressure (MAP) Sensor - 5.7L

Courtesy of CHRYSLER LLC

1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor o-ring seal for cuts or tears.
3. Position sensor (3) into intake manifold.
4. Rotate sensor 1/4 turn clockwise for installation.
5. Connect electrical connector (2) to sensor (3).
