SENSOR, Crankshaft Position: Removal: 2.7L

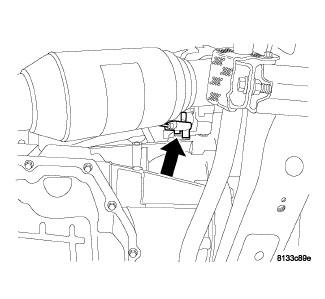

Fig 1: Crankshaft Position Sensor Location
GC0080454Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Raise vehicle and support.

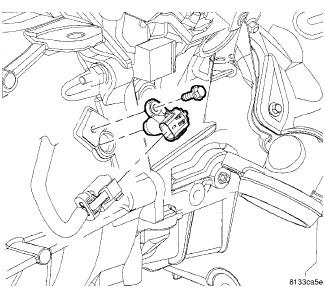

    Fig 2: Removing/Installing Crankshaft Position Sensor
    GC0080455Courtesy of CHRYSLER LLC
  3. Unlock and disconnect the electrical connector.
  4. Remove mounting bolt.
  5. Remove sensor.
