SENSOR, Air Temperature, Inlet: Removal: 6.1L

Fig 1: Locating Inlet Air Temperature Sensor - 6.1L

Courtesy of CHRYSLER LLC

The Inlet Manifold Air Temperature (IAT) sensor (4) is installed into the rubber air intake hose near front of throttle body.

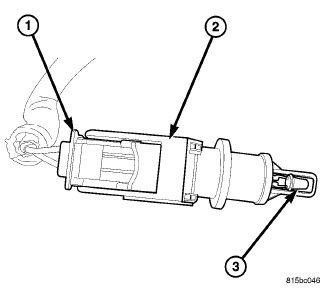

Fig 2: Inlet Air Temperature Sensor, Electrical Connector, And Sensor Probe

Courtesy of CHRYSLER LLC

1. Pull sensor from rubber hose.
2. Disconnect electrical connector (1) from IAT sensor (2).
3. Check sensor probe (3) for damage.
4. Clean dirt from sensor base.
