SENSOR, Air Temperature, Inlet: Removal: 3.5L

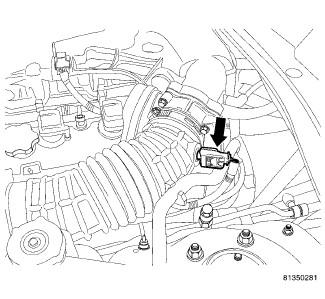

Fig 1: Locating Inlet Air Temperature Sensor - 3.5L

Courtesy of CHRYSLER LLC

1. Sensor location.
2. Disconnect negative battery cable.

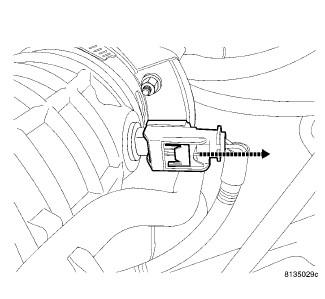

   Fig 2: Inlet Air Temperature Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
3. Unlock the electrical connector.
4. Remove electrical connector from sensor.
   Fig 3: Identifying Inlet Air Temperature Sensor

   Courtesy of CHRYSLER LLC
5. Note sensor orientation.
6. Remove sensor.
