SENSOR, Air Temperature, Inlet: Removal: 2.7L

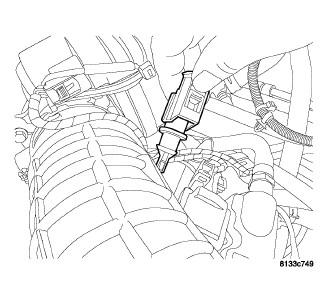

Fig 1: Locating Inlet Air Temperature Sensor - 2.7L

Courtesy of CHRYSLER LLC

1. Sensor location.
2. Disconnect negative battery cable.

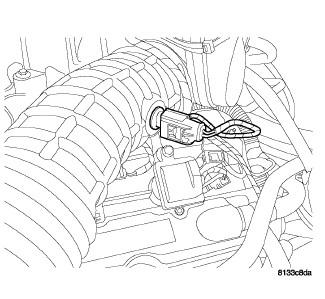

   Fig 2: Inlet Air Temperature Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
3. Unlock electrical connector.
4. Remove electrical connector from sensor.
5. Note the orientation of the sensor.
   Fig 3: Removing/Installing Inlet Air Temperature Sensor

   Courtesy of CHRYSLER LLC
6. Remove sensor from air inlet hose.
