SENSOR, Air Temperature, Inlet: Installation: 5.7L

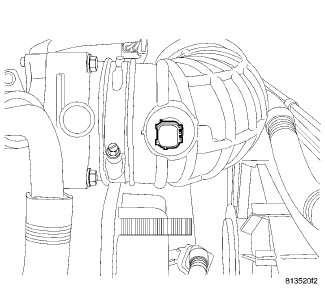

Fig 1: Identifying Inlet Air Temperature Sensor - 5.7L

Courtesy of CHRYSLER LLC

1. Press sensor into rubber air hose.
2. Rotate sensor into position as shown in illustration. For proper system operation, sensor must be positioned as shown in illustration.

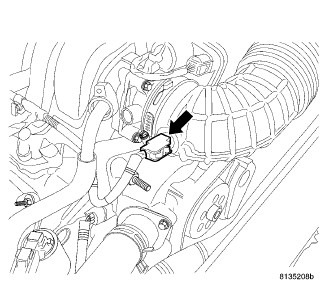

   Fig 2: Locating Inlet Air Temperature Sensor - 5.7L

   Courtesy of CHRYSLER LLC
3. Connect electrical connector to sensor.
