SENSOR, Air Temperature, Inlet: Installation: 2.7L

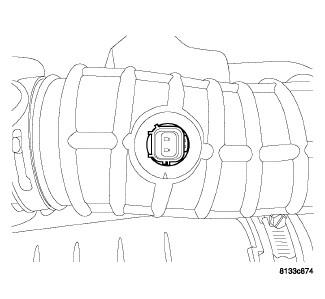

Fig 1: Locating Inlet Air Temperature Sensor - 2.7L

Courtesy of CHRYSLER LLC

1. Install sensor. Rotate for proper orientation.
   Fig 2: Inlet Air Temperature Sensor Orientation

   Courtesy of CHRYSLER LLC
2. Proper orientation of sensor.
   Fig 3: Removing/Installing Inlet Air Temperature Sensor

   Courtesy of CHRYSLER LLC
3. Install electrical connector and lock.
4. Connect negative battery cable.
