TUBE, Fuel Tank Filler: Removal: Removal

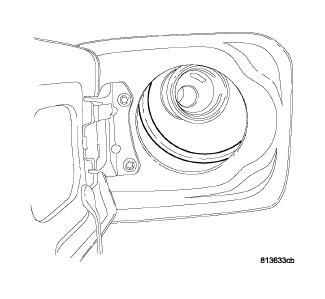

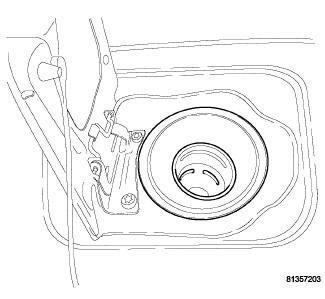

Fig 1: Filler Tube Door

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Drain fuel from tank.
Fuel filler tube assembly.
Open filler tube door.

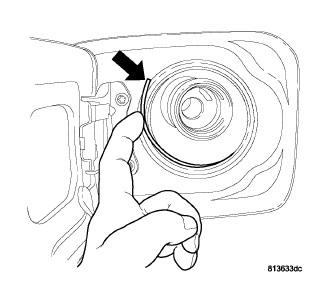

Fig 2: Removing/Installing Retaining Wire
Courtesy of CHRYSLER LLC
Remove retaining wire from inside filler tube rubber.

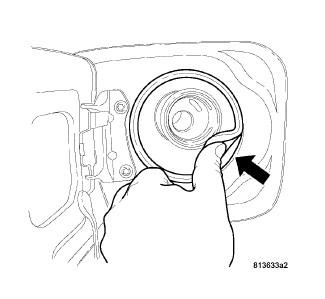

Fig 3: Rubber At Filler Tube Opening
Courtesy of CHRYSLER LLC
Start removing rubber from body sheet metal.

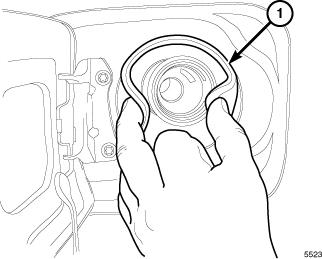

Fig 4: Squeezing Rubber And Pushing In
Courtesy of CHRYSLER LLC
Squeeze rubber and push in.

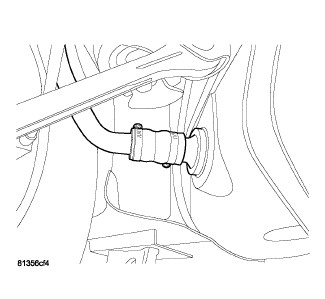

Fig 5: Filler Tube With Rubber Removed
Courtesy of CHRYSLER LLC
Filler tube and rubber removed from body sheet metal.
Raise vehicle and support.
Remove the left rear tire.
Remove the left inner splash shield.

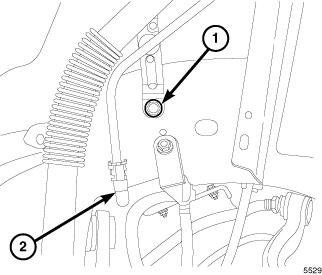

Fig 6: Filler Tube Vent Line And Mounting Bolt
Courtesy of CHRYSLER LLC
Disconnect the filler tube vent line (2).
Remove the filler tube mounting bolt (1).

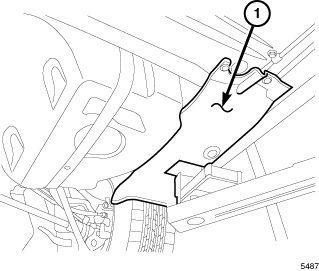

Fig 7: Left Underbody Splash Shield
Courtesy of CHRYSLER LLC
Remove the under body splash shield (1).

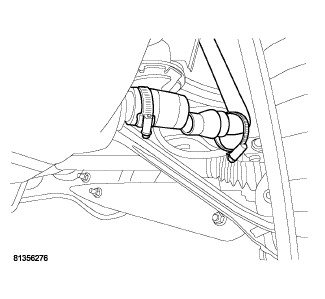

Fig 8: Filler Tube
Courtesy of CHRYSLER LLC
Loosen the filler tube hose clamp. Leave the clamp tight on the hose and fuel tank location.

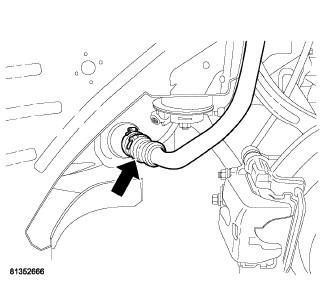

Fig 9: Filler Tube Hose Clamp
Courtesy of CHRYSLER LLC
Move clamp toward the fuel tank.

Fig 10: Filler Tube
Courtesy of CHRYSLER LLC
Remove the filler tube assembly from the vehicle.
