RAIL, Fuel: Removal: 6.1L

WARNING: The fuel system is under constant pressure even with engine off. Before servicing fuel rail, fuel system pressure must be released.

Fig 1: Fuel Rail - 6.1L

Courtesy of CHRYSLER LLC

CAUTION: The left (3) and right (1) fuel rails are replaced as an assembly. Do not attempt to separate rail halves at connector tube (2). Due to design of tube, it does not use any clamps. Never attempt to install a clamping device of any kind to tube. When removing fuel rail assembly for any reason, be careful not to bend or kink tube.

Remove fuel tank filler tube cap.
Perform Fuel System Pressure Release Procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Remove negative battery cable at battery.
Remove flex tube (air cleaner housing to engine).

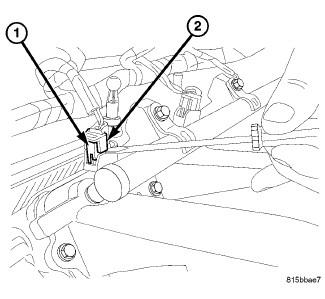

Fig 2: Locating Manifold Air Pressure MAP Sensor - 6.1L
Courtesy of CHRYSLER LLC
Remove electrical connector from MAP sensor (2) at rear of intake manifold (1).
Disconnect vacuum hose from fitting (3) at rear of intake manifold (1).

Fig 3: Fuel Line At Fuel Rail Fitting- 6.1L
Courtesy of CHRYSLER LLC
Disconnect fuel line (1) at fuel rail fitting. For procedures, refer to QUICK-CONNECT FITTINGS .

Fig 4: Fuel Injector Electrical Connector (Red)
Courtesy of CHRYSLER LLC
Disconnect electrical connectors at all 8 fuel injectors. First, pry up on red colored tab (2).
Press on black colored tab (1) while removing connector (2) from fuel injector (3).

Fig 5: Fuel Rail Mounting - 6.1L
Courtesy of CHRYSLER LLC
Remove four fuel rail mounting bolts (1).
Gently rock and pull left side of fuel rail until fuel injectors just start to clear machined holes in intake manifold. Gently rock and pull right side of rail until injectors just start to clear intake manifold head holes. Repeat this procedure (left/right) until all injectors have cleared machined holes.
Remove fuel rail (with injectors attached) from engine.
If fuel injectors are to be removed, refer to INJECTOR(S), Fuel for removal/installation procedures.
