Right Fuel Rail

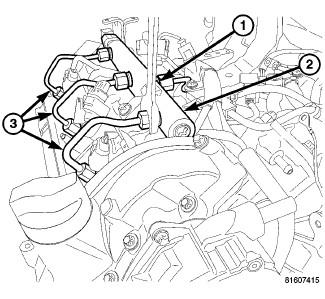

Fig 1: Right Fuel Rail
GC0081904Courtesy of CHRYSLER LLC
WARNING: No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.
  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Remove the strut tower support.
  4. Loosen the high pressure lines at the fuel injectors.
  5. Disconnect the high pressure lines at the fuel rail.
  6. Disconnect the fuel rail pressure sensor.
  7. Remove the right fuel rail.
