Left Fuel Rail
WARNING:
No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.
- Disconnect the negative battery cable.
- Remove the engine cover.
- Disconnect the fuel rail solenoid.
- Remove the charge air cooler inlet tube.

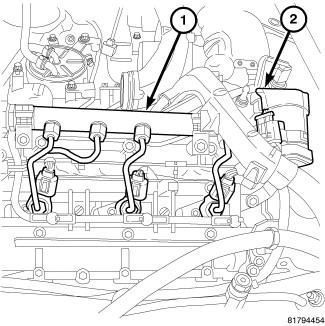

- Unfasten the fuel supply and return hose clamps at the high pressure pump (2), fuel filter and fuel rail (1) using fuel line pliers 9539.
- Remove the fuel supply and return pipe bundle and position aside.
- Remove the main engine wiring harness fasteners at the left rear cylinder head.
- Loosen the high pressure lines at the left fuel injectors.
- Disconnect the high pressure lines at the fuel rail.
- Remove the left fuel rail (1).
