Engine Oil Level Check

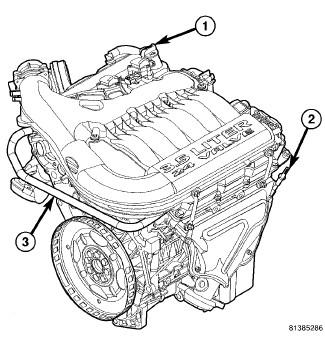

Fig 1: OIL FILL AND INDICATOR

Courtesy of CHRYSLER LLC

The best time to check engine oil level (2) is after the engine has sat overnight, or if the engine has been running, allow the engine to be shut off for at least 5 minutes before checking oil level.

Checking the oil (2) while the vehicle is on level ground will improve the accuracy of the oil level reading. Add oil (1) only when the level is at, or below, the ADD mark on the indicator (2).
