Rocker Arm

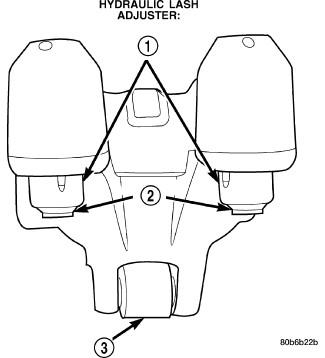

Fig 1: Rocker Arm Assembly
GC0095490Courtesy of CHRYSLER LLC
1 - RETAINER
2 - SWIVEL PAD
3 - ROLLER

Rocker arms are made of light weight permanent mold aluminum alloy with a roller (3) type follower operating against the camshaft . The valve actuating end of the rocker arms are machined to retain hydraulic lash adjusters, eliminating the need for manual valve lash adjustment.
