Cylinder Head: Inspection: Inspection
- Before cleaning, check for leaks, damage and cracks.
- Clean cylinder head and oil passages.

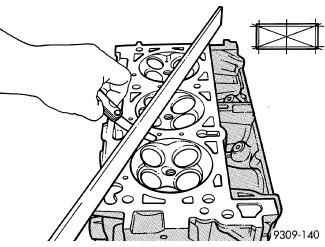

- Check cylinder head for flatness .
- Cylinder head must be flat within:CAUTION: 0.20 mm (0.008 in.) MAX is a combined total dimension of the stock removal limit from cylinder head and block top surface (Deck) together.
- Standard dimension = less than 0.05 mm (0.002 inch.)
- Service Limit = 0.2 mm (0.008 inch.)
- Grinding Limit = Maximum of 0.2 mm (0.008 inch.) is permitted.
