60/40 Seat Back - Domestic Sedan

40% SEAT BACK SIDE

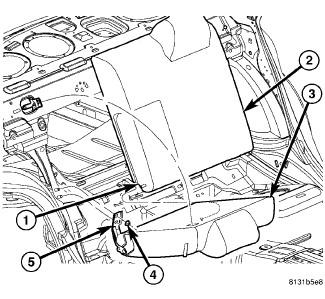

Fig 1: REAR SEAT BACK 40%

Courtesy of CHRYSLER LLC

1. Fold the 40% section of the seat (3) down.
2. Remove the two nuts (4) attaching seat back.
3. Pivot the seat back off the pivot pin (1) located on the 60% seat back (2).
4. Remove the seat back from vehicle.

60% SEAT BACK SIDE

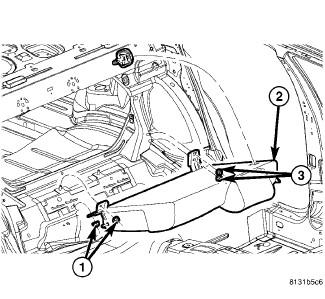

Fig 1: REAR SEAT BACK 60%

Courtesy of CHRYSLER LLC

1. With the 40% seat back removed.
2. Fold the 60% section of the seat down.
3. Remove the four nuts attaching seat back (4).
4. Remove the seat back for vehicle.
