Manual Length Adjuster

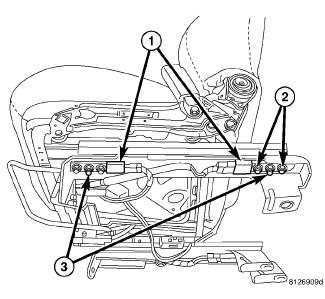

Fig 1: PASS SEAT MANUAL TRACK
GC0080229Courtesy of CHRYSLER LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. See Body/Seats - Warning
  2. Remove the seat. See Body/Seats/SEAT - Removal
  3. Move the seat to the forward position on the tracks and remove the seat adjuster bolts/nuts (3).
  4. Move the seat to the reward position on the tracks and remove the front seat adjuster bolts/nuts (3).
    NOTE: Passenger seat with strain gauges Fig 1, drivers side seat similar.
  5. Disconnect strain gauge electrical connectors (1), if equipped.
  6. If equipped, remove the strain gauge bolts (2) and remove the strain gauges as necessary.
