Panel, Cowl Trim: Removal: Upper

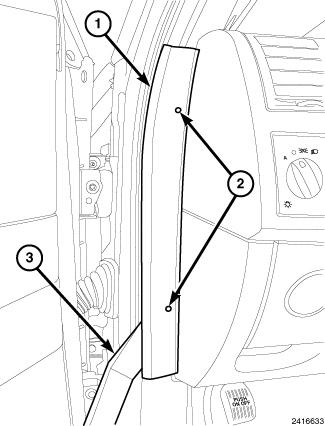

Fig 1: Lower Cowl Trim Panel
GC0095962Courtesy of CHRYSLER LLC
  1. Using trim tool C-4829A or equivalent (3), directly below the lower retaining clip (2), release the clip.

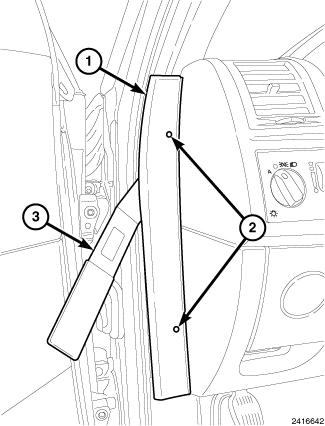

    Fig 2: Upper Cowl Trim Panel
    GC0095963Courtesy of CHRYSLER LLC
  2. Using trim tool C-4829A or equivalent (3), directly below the upper retaining clip (2), release the clip and remove the upper cowl trim panel (1).
