Panel, Cowl Trim: Removal: Lower

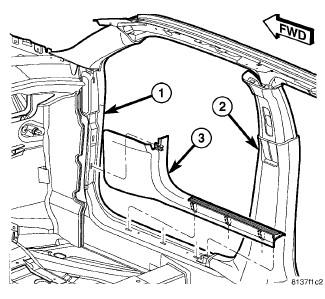

Fig 1: Lower Cowl Trim
GC0080742Courtesy of CHRYSLER LLC
  1. Remove the upper cowl trim from the front of the front door opening. See Body/Interior/PANEL, Cowl Trim - Removal .
  2. Using a trim stick or another suitable wide flat-bladed tool and starting nearest the B-pillar trim (2), carefully pry the lower cowl trim (3) upward from the front door opening sill far enough to disengage the three spring clip retainers that secure the trim to the slots in the sill.
  3. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the lower cowl trim rearward from the front of the front door opening far enough to disengage the spring clip retainer that secures the trim to the slot in the cowl (1).
  4. Remove the lower cowl trim from the vehicle.
