Shield, Splash, Rear Wheelhouse: Removal: Removal

Fig 1: SHIELD 1

Courtesy of CHRYSLER LLC

1. Raise and support the vehicle.
2. Remove the wheels from the side of the vehicle being serviced. Refer to Tires and Wheels - Removal .
3. Remove the rear portion of the body side cladding from the side of the vehicle being serviced. See Body/Exterior/CLADDING, Body - Removal .

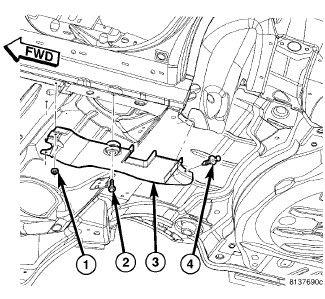

4. Remove the nuts (1), bolt (2) and the push-pins (4), that secure the lower rear wheelhouse shield (3) to the body.
5. Remove lower rear wheelhouse shield from the vehicle.
   Fig 2: SHIELD 2

   Courtesy of CHRYSLER LLC

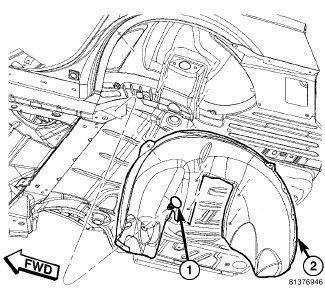

6. Remove the push-pins (1) that secure the rear wheelhouse shield (2) to the body.
7. Remove the rear wheelhouse shield from the vehicle.
