Panel, Trim: Removal: Lower

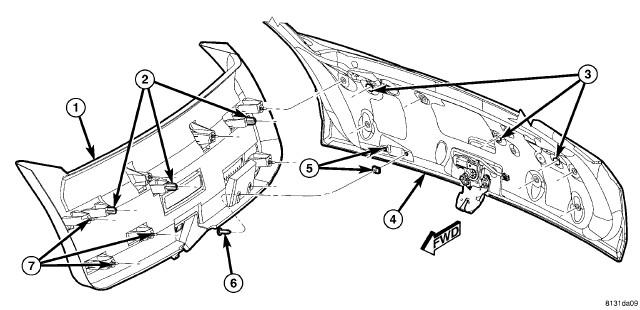

Fig 1: Removing/Installing Liftgate Trim Panel
GC0080269Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the lamp from the lower liftgate trim panel.
  3. Remove the two screws (6) within the pull cup formation to the right of the latch that secure the lower trim panel (1) to the inside of the liftgate (4).
  4. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the trim panel away from the inside of the liftgate to release the seven push-in plastic fasteners (7) that secure the panel to the liftgate.
  5. Remove the liftgate lower trim panel from the vehicle.
