SEAL, Axle Drive Shaft: Removal: Removal

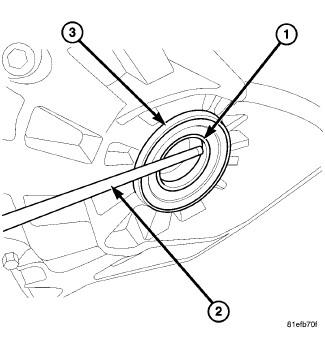

Fig 1: REMOVE LEFT SIDE SEAL
GC0095134Courtesy of CHRYSLER LLC
  1. Remove halfshaft(s). See Differential and Driveline/Half Shaft - Removal
  2. Using suitable screwdriver (1), remove axle shaft seal (2).
  3. Visually inspect halfshaft seal journal for damage (excessive seal groove, nicks, scratches, etc.). Replace halfshaft if necessary.
