CASE ASSEMBLY, Differential: Assembly: Assembly

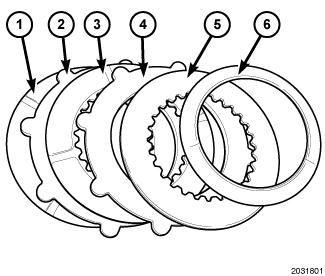

Fig 1: Clutch Pack

Courtesy of CHRYSLER LLC

1. Assemble the clutch pack as follows: Friction disc (1), tabbed plate (2), friction disc (3), tabbed plate (4), large friction disc (5), and Belleville spring (6). Verify the friction surface on the large friction disc (5) is facing the tabbed plate (4).

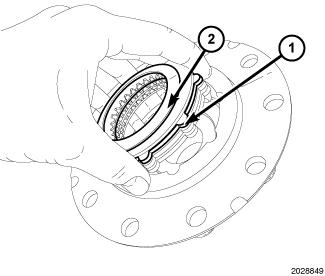

   Fig 2: Clutch Pack And Belleville Spring From Primary Differential Case Half

   Courtesy of CHRYSLER LLC
   NOTE: Verify the raised edge of the Belleville spring (2) is facing up, or away from the clutch pack (1).
2. Install the clutch pack (1) and the Belleville spring (2) into the primary differential case half (3).

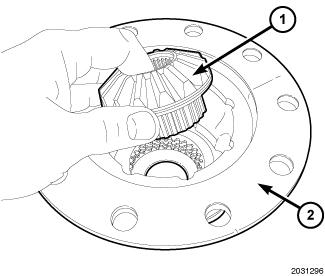

   Fig 3: Differential Side Gear From Primary Differential Case Half

   Courtesy of CHRYSLER LLC
3. Install the differential side gear (1) into the primary differential case half (2).
   Fig 4: Splines On Differential Side Gear

   Courtesy of CHRYSLER LLC
4. Verify the differential side gear (1) is fully seated in the primary case half (2). Rotate the side gear as necessary to align the splines on all the friction plates with the splines on the differential side gear (1).
   Fig 5: Secondary Differential Side Gears

   Courtesy of CHRYSLER LLC
5. Install the secondary differential side gears (2), then slightly compress the Belleville spring by pressing down on the differential side gear, and install the secondary (split) pinion shafts (1).
   Fig 6: Primary Differential Pinion Gears

   Courtesy of CHRYSLER LLC
6. Install the primary differential pinion gears (1).

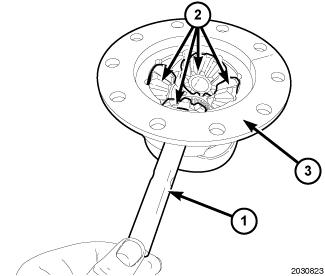

   Fig 7: Primary Differential Pinion Gear Shaft

   Courtesy of CHRYSLER LLC
   NOTE: It may be necessary use the differential side gear to press downward on the four pinions (2) for primary differential pinion gear shaft (1) removal.
7. Install the primary differential pinion gear shaft (1).
   Fig 8: Clutch Pack

   Courtesy of CHRYSLER LLC
8. Assemble the clutch pack as follows: Friction disc (1), tabbed plate (2), friction disc (3), tabbed plate (4), large friction disc (5), and Belleville spring (6). Verify the friction surface on the large friction disc (5) is facing the tabbed plate (4).
   Fig 9: Clutch Pack And Belleville Spring

   Courtesy of CHRYSLER LLC
   NOTE: Verify the raised edge of the Belleville spring (2) is facing up, or away from the clutch pack (1).
9. Install the clutch pack (1) and the Belleville spring (2).
   Fig 10: Differential Side Gear

   Courtesy of CHRYSLER LLC
10. Install the differential side gear (1).

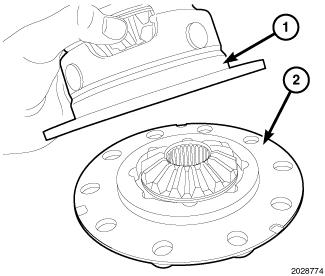

    Fig 11: Separating Primary And Secondary Differential Case Halves

    Courtesy of CHRYSLER LLC
11. Assemble the primary (1) and secondary (2) differential case halves.

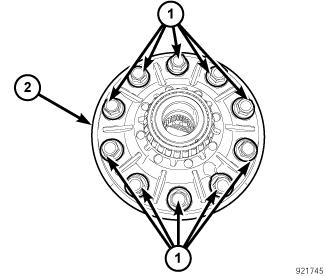

    Fig 12: Ring Gear Bolts

    Courtesy of CHRYSLER LLC
12. Install the Ring Gear (2), and the Ring Gear Bolts (1). Tighten the ring gear bolts to 185 Nm (136 ft. lbs.).
