Differential Disassembly

NOTE: The differential ring gear is welded to the differential case and is not serviceable separately.

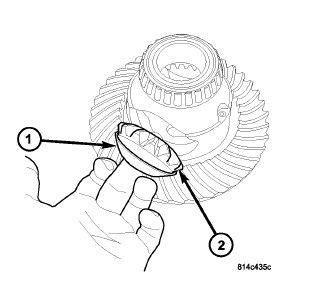

Fig 1: Side Gear and Washer

Courtesy of CHRYSLER LLC

Rotate differential side gears about case and remove side gears (2) and thrust washers (1).

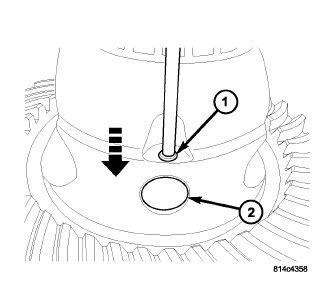

Fig 2: Pinion Shaft Roll Pin
Courtesy of CHRYSLER LLC
Using suitable punch, drive pinion shaft roll pin (1) into case until it bottoms.
Drive old roll pin from shaft and discard old pin.

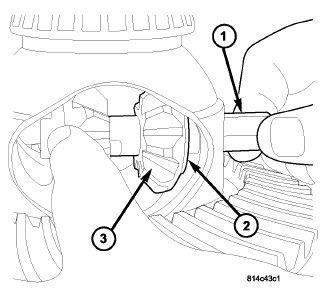

Fig 3: Pinion Shaft Removal/Installation
Courtesy of CHRYSLER LLC
Remove pinion shaft (1), pinion gears (3) and thrust washers (2). Drive out and discard pinion shaft roll pin.

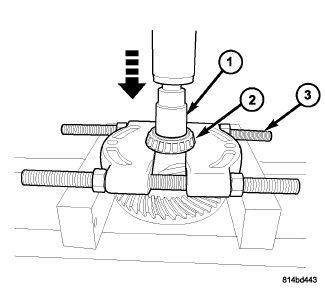

Fig 4: Side Bearing Removal (Ring Gear Side)
Courtesy of CHRYSLER LLC
Using Plug 9676 (1) and Bearing Splitter 1130 (3), press differential side bearing (2) off of ring gear side and discard.

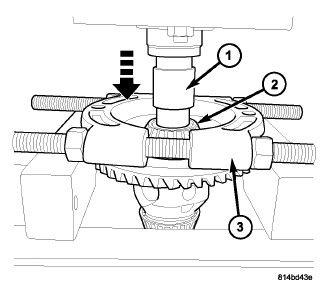

Fig 5: Side Bearing Removal
Courtesy of CHRYSLER LLC
Using Plug 9676 (1) and Bearing Splitter 1130 (3), press differential side bearing (2) off of opposite side and discard.
