ROTOR, Brake: Installation: Rear

NOTE: Inspect disc brake pads and parking brake shoes before installation. See Brakes/Hydraulic/Mechanical/PADS, Brake - Inspection .

Fig 1: SOLID BRAKE ROTOR MOUNTING

Courtesy of CHRYSLER LLC

Clean hub (1) face to remove any dirt or corrosion where brake rotor mounts.
Install brake rotor (3) over wheel mounting studs and onto hub (1).

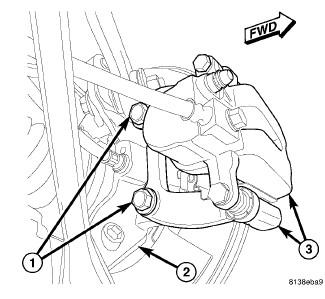

Fig 2: REAR CALIPER AND ADAPTER MOUNTING
Courtesy of CHRYSLER LLC
Install disc brake caliper and adapter assembly (3) over brake rotor.
Install mounting bolts (1) securing caliper adapter (3) to knuckle (2). Tighten bolts to 115 N.m (85 ft. lbs.).

Fig 3: TIRE AND WHEEL MOUNTING
Courtesy of CHRYSLER LLC
Install tire and wheel assembly (1). Refer to Tires and Wheels - Installation . Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) (Police - 190 N.m (140 ft. lbs.)).
Lower vehicle.
Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.

Fig 4: IDENTIFYING MASTER CYLINDER RESERVOIR
Courtesy of CHRYSLER LLC
Check and adjust brake fluid level in reservoir (1) as necessary.
CAUTION: If NEW brake rotors or pads have been installed, keep in mind that braking effectiveness might be somewhat reduced during the first brake applications following installation.

CAUTION: A burnish procedure must be performed anytime NEW brake pads or rotors are installed on a vehicle equipped with the Police Package. This procedure is particularly important in situations where high speed pursuit is a possibility. It is recommended that the procedure be performed by the Police agency operating the vehicle so it can be performed in a safe controlled environment. This information is covered in the Police Package Owners Manual Supplement which was supplied when the vehicle was originally delivered.
Road test vehicle making several stops to wear off any foreign material on brakes and to seat brake shoes. If the vehicle is equipped with the Police Package, a burnish procedure must be followed (Refer to preceeding Caution).
