WASHER, Headlamp: Installation: Installation

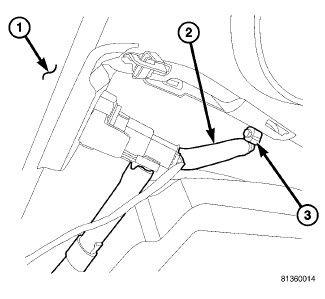

Fig 1: Front Fascia, Washer Hose, And Washer Fitting

Courtesy of CHRYSLER LLC

1. Install headlamp washer to front fascia (1).
2. Attache washer hose (2) to headlamp washer fitting (3).
3. Install front fascia (1). Refer to Frame and Bumpers/Bumpers/FASCIA, Front - Installation .
4. Connect battery negative cable.
