LAMP, Tail: Removal: Removal: Wagon

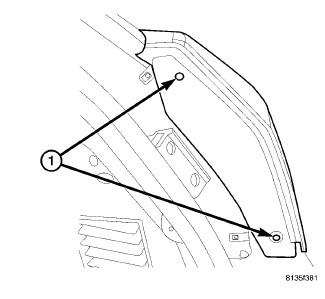

Fig 1: Identifying Push Pin Fasteners

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
Remove the two push pin fasteners (1) in the liftgate opening.

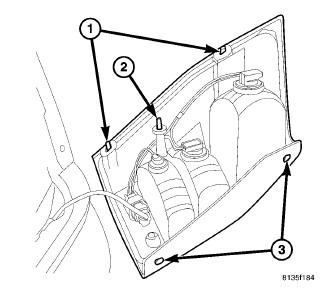

Fig 2: Removing/Installing Tail Lamp Unit
Courtesy of CHRYSLER LLC
From inside the cargo area, using a trim stick (special tool #C-4755) or equivalent, gently pry the access panel off the rear of the quarter trim panel.
Remove the one plastic wing nut.

Fig 3: Tail Lamp Mounting Tabs
Courtesy of CHRYSLER LLC
Pulling rearward, release the mounting tabs of the tail lamp unit (1).

Fig 4: Tail Lamp Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the electrical connector (3) from tail lamp unit (1).

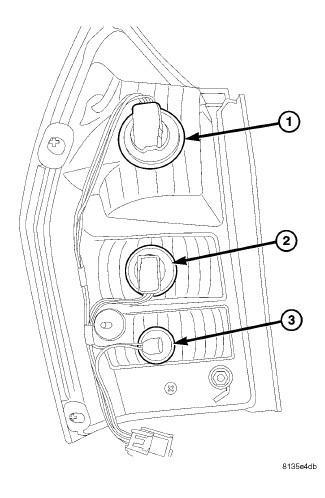

Fig 5: Stop Lamp, Turn Signal Lamp, And Back-Up Lamp

Courtesy of CHRYSLER LLC

Twist counterclockwise to remove the Stop (1), Turn Signal (2), or Back-Up lamps.
