LAMP, Spot: Description: Description

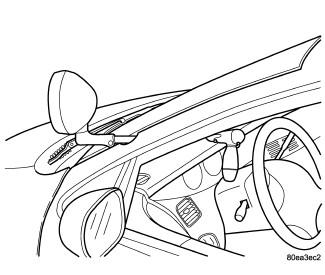

This vehicle may be equipped with up to two spot lamp assemblies attached to the A-Pillars. The spot lamp assembly switch is located on the handle just above the rotating handle grip.
Each spot lamp assembly contains a 100 watt halogen bulb. The spot lamp assemblies are fused individually and powered hot at all times. There are three fuses in the Power Distribution Center (PDC) that control the spot lamp assemblies:
The parts available for service are:
- Complete spot lamp assembly.
- H3 100 watt halogen bulb.
- Inside control handle w/switch.
