Floor Shift

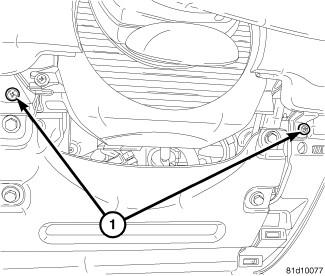

Fig 1: INSTRUMENT PANEL LOWER SCREWS
GC0079982Courtesy of CHRYSLER LLC
  1. Disconnect the battery negative cable.
  2. Remove the lower steering column trim cover and steering column cover reinforcement. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Removal
  3. Remove the two screws (1) from the lower instrument cluster trim.

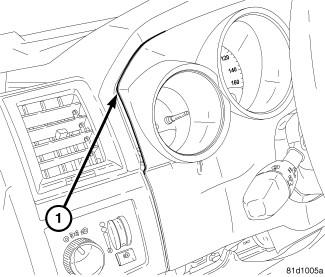

    Fig 2: Edge Of The Trim
    GC0079983Courtesy of CHRYSLER LLC
  4. Using a trim stick or equivalent, gently pry (1) along the edge of the trim to remove the instrument cluster trim.

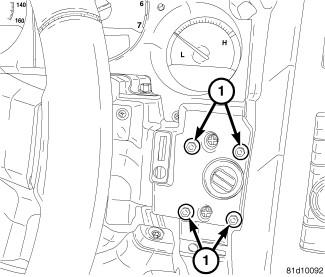

    Fig 3: Wireless Ignition Node Screws
    GC0079984Courtesy of CHRYSLER LLC
  5. Remove the 4 screws from the WIN (1).
    Fig 4: Wireless Ignition Node
    GC0079985Courtesy of CHRYSLER LLC
  6. Remove the WIN (1) from the rear if the instrument panel bringing it through the opening below the steering column and disconnect the electrical connector (2) from the WIN.
