Column Shift

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag and possible personal injury.

Disconnect the negative battery cable.

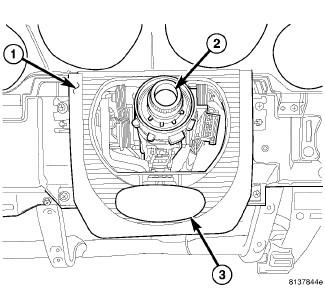

Fig 1: REINFORCEMENT INSTRUMENT PANEL STEERING COLUMN
Courtesy of CHRYSLER LLC
Remove the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Removal .

Fig 2: GEAR SHIFT LEVER MOUNTING SCREW
Courtesy of CHRYSLER LLC
Remove the gearshift lever. Refer to Steering/Column/LEVER, Gearshift - Removal .

Fig 3: Bezel-Ignition Switch Remove Dodge
Courtesy of CHRYSLER LLC
Remove the instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Removal .

Fig 4: Instrument Cluster Bezel
Courtesy of CHRYSLER LLC
Remove the instrument cluster. Refer to Electrical/Instrument Cluster - Removal .

Fig 5: ROLL TOP SHROUD
Courtesy of CHRYSLER LLC
Remove the three roll top shroud mounting screws and position aside (1).

Fig 6: UPPER COLUMN MOUNTING BOLTS
Courtesy of CHRYSLER LLC
Remove the two upper mounting bolts (1) from the steering column (2) and partially lower the column.

Fig 7: Wireless Ignition Node
Courtesy of CHRYSLER LLC
Remove the four screws that secure the WIN (1) and remove the WIN from the rear of the instrument panel.
Bring the WIN through the opening above the steering column and disconnect the electrical connector (2) from the WIN.
