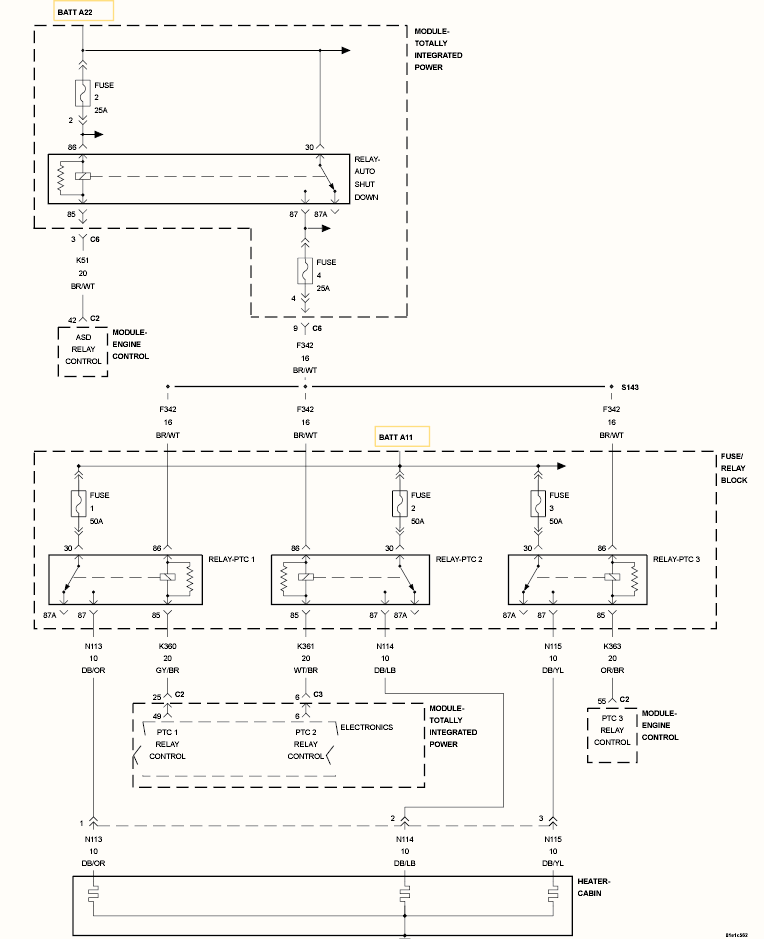

Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> DTCS B10B3 To B1659 (TIPM) >> B113A-Cabin Heater 3 Control Circuit Open >> Circuit Schematic
