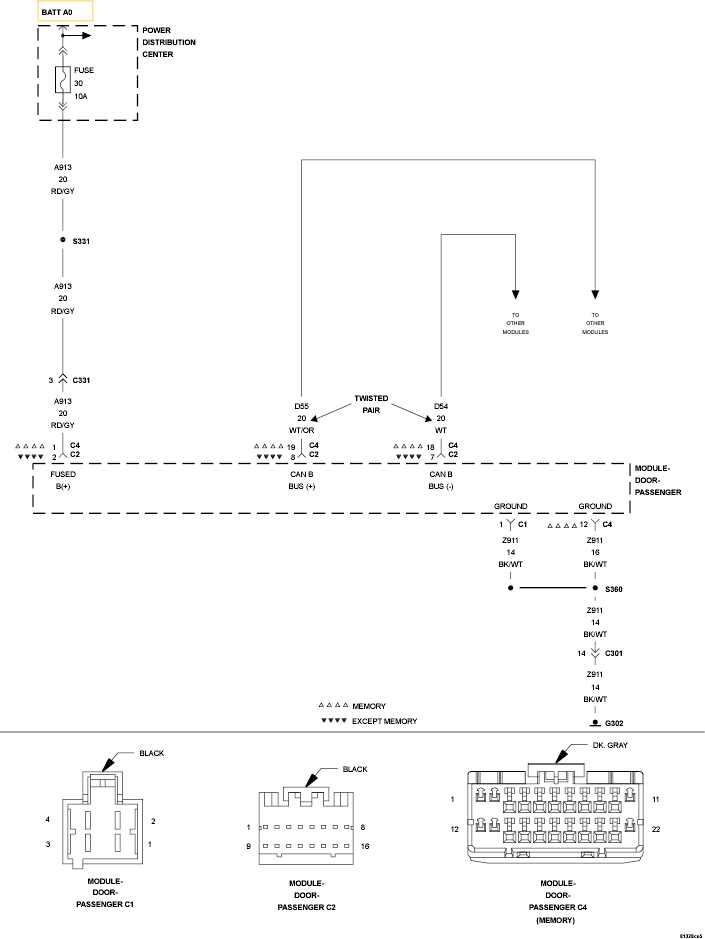

No Response From PDM (Passenger Door Module): Notes
For complete wiring diagrams, refer to:
- SYSTEM WIRING DIAGRAMS for 300.
- SYSTEM WIRING DIAGRAMS for Charger.
| Possible Causes |
|---|
| (A913) FUSED B (+) CIRCUIT OPEN OR SHORTED |
| (Z911) GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| PASSENGER DOOR MODULE |
