No Response From Orc (Occupant Restraint Controller Module): Notes

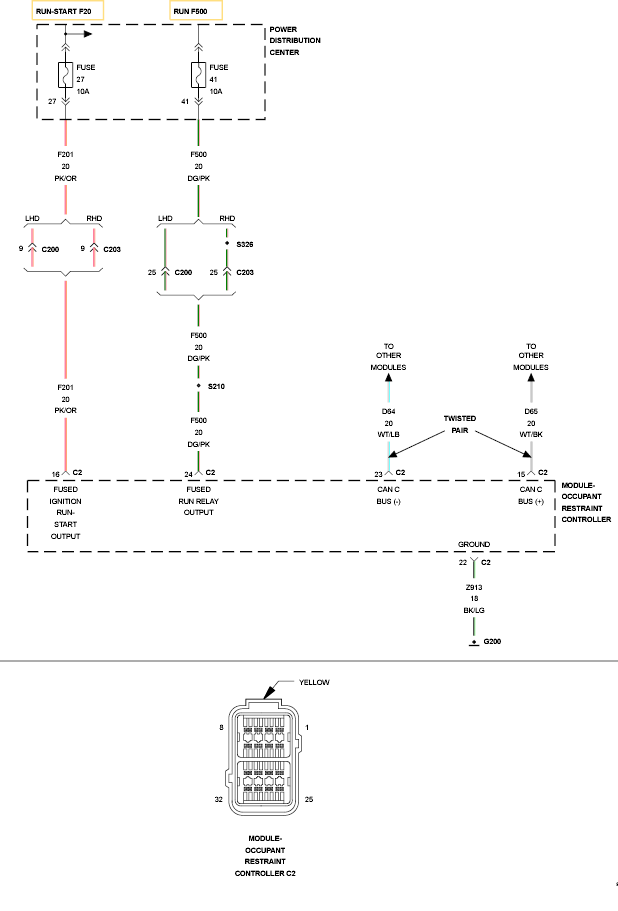

Fig 1: Occupant Restraint Controller Module - Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to:

Possible Causes
(Z913) GROUND CIRCUIT OPEN
(F500) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED
(F201) FUSED IGNITION RUN-START OUTPUT CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
OCCUPANT RESTRAINT CONTROLLER MODULE
