No Response From HIDT (Headlamp Leveling Module): Notes

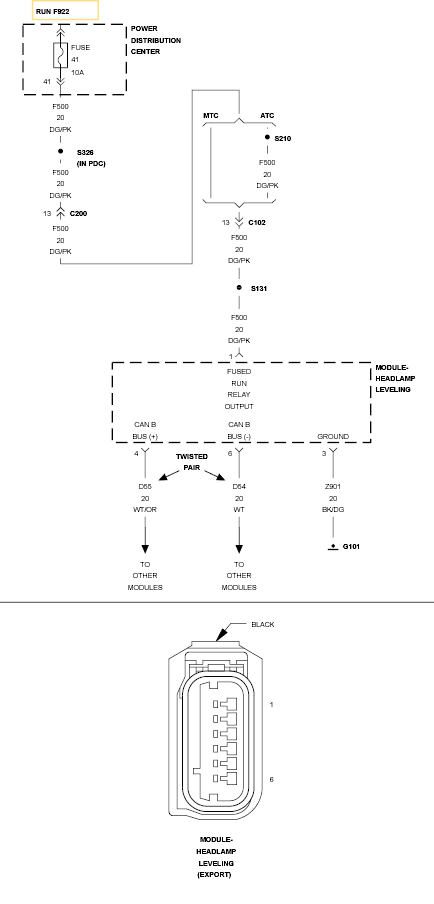

For complete wiring diagrams, refer to:
- SYSTEM WIRING DIAGRAMS for 300.
- SYSTEM WIRING DIAGRAMS for Charger.
| Possible Causes |
|---|
| (F500) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED |
| (Z901) GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| HEADLAMP LEVELING MODULE |
