Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
  NOTE: Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. Using the scan tool, select ECU View.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE: Check the TIPM for any active CAN C hardware DTCs, and perform DTC(s) before proceeding.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to Step 2.
  No
  - The no response condition is not present at this time. Using the appropriate wiring diagram as a guide, inspect the wiring for chafed, pierced, pinched and partially broken wires and the wiring harness connectors for broken, bent, pushed out and corroded terminals.
(A925) FUSED B(+) CIRCUIT OPEN OR SHORTED

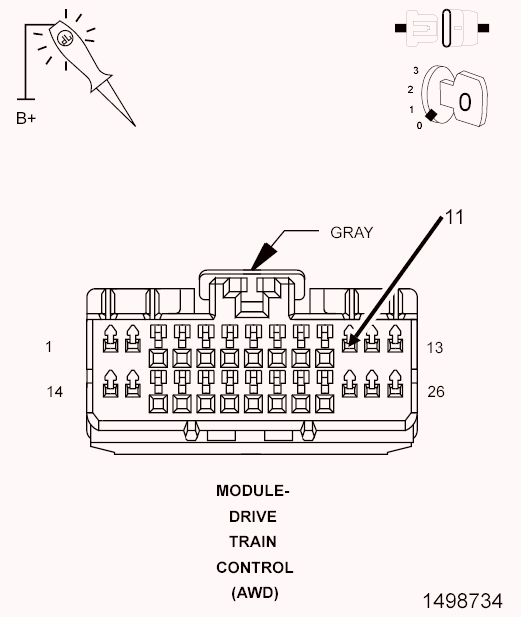

Fig 1: Checking Fused B(+) Circuit Using 12-Volt Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the DTCM harness connector.
3. Using a 12-volt test light connected to ground, check the (A925) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 3.
  No
  - Repair the (A925) Fused B(+) circuit for an open or short.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
(Z902) GROUND CIRCUIT OPEN

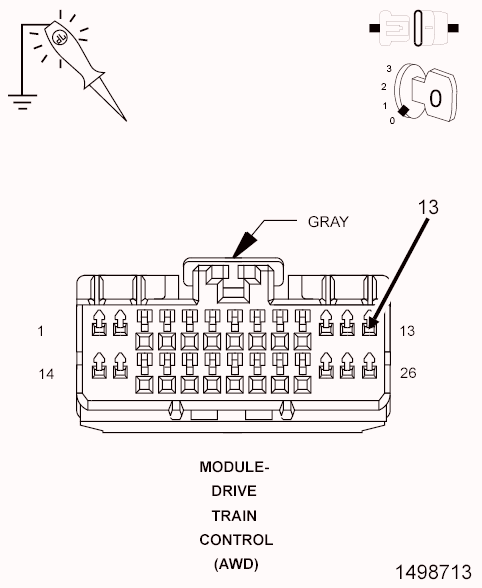

Fig 2: Checking Ground Circuit Using 12-Volt Test Light Connected To 12-Volts
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z902) ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 4.
  No
  - Repair the (Z902) ground circuit for an open.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
(F214) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED

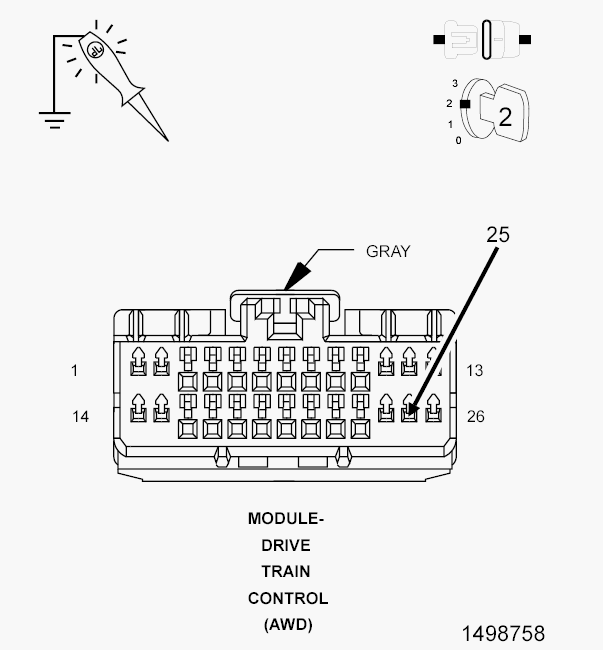

Fig 3: Checking Fused Run Relay Output Circuit Using 12-Volt Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F214) Fused Run Relay Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to Step 5.
  No
  - Repair the (F214) Fused Run Relay Output circuit for an open or short.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
(D65) CAN C BUS (+) CIRCUIT OPEN

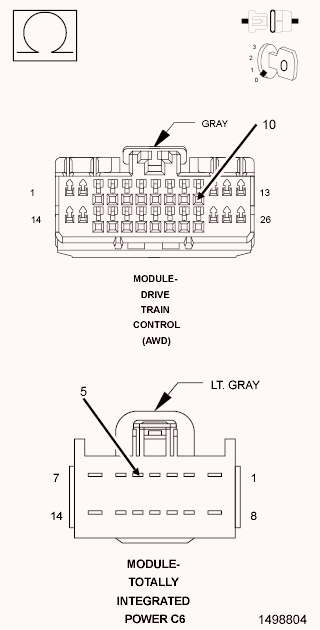

Fig 4: Measuring Resistance Of CAN C Bus (+) Circuit Between TIPM C6 Harness Connector & DTCM Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C6 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C6 harness connector and the DTCM harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Go to Step 6.
  No
  - Repair the (D65) CAN C Bus (+) circuit for an open.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
(D64) CAN C BUS (-) CIRCUIT OPEN

Fig 5: Measuring Resistance Of CAN C Bus (-) Circuit Between TIPM C6 Harness Connector & DTCM Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C6 harness connector and the DTCM harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Replace and program the Drive Train Control Module in accordance with the Service Information.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
  No
  - Repair the (D64) CAN C Bus (-) circuit for an open.
  - Perform DTCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Drivetrain Control (DTCM) - Standard Procedure .
