No Response From DDM (Driver Door Module): Notes

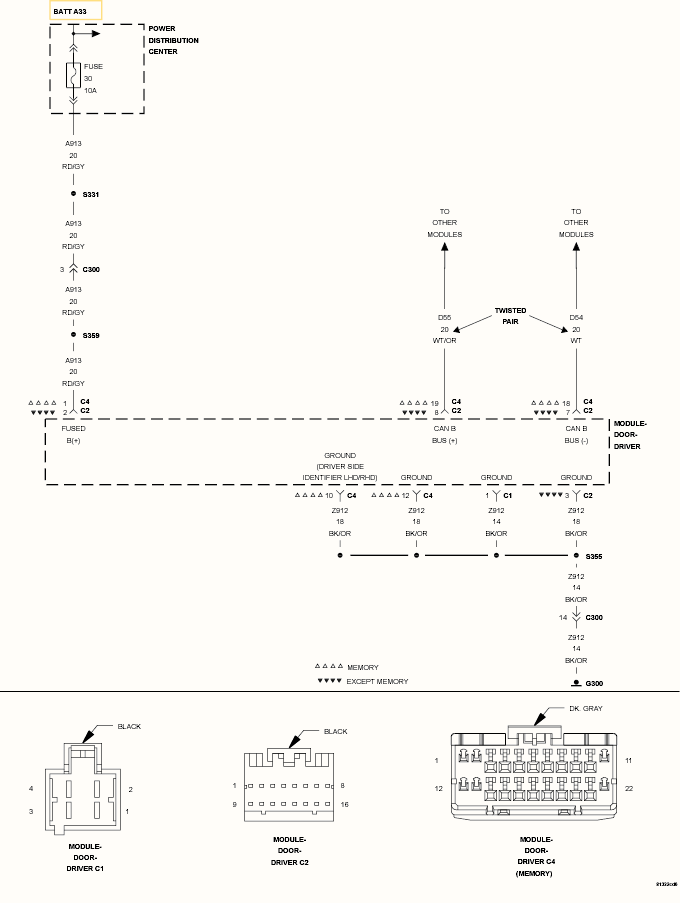

Fig 1: Driver Door Module - Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to:

Possible Causes
(A913) FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z912) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
DRIVER DOOR MODULE
