Throttle Body (D6701)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 54390612

Part Description: ASSEMBLY 6 WAY EGAS (1.50MM YESC SEALED)

Connector No: D6701

Option: Standard

Repair Kit Part Number: 05183469AA

Cavity Count: 6

Fig 1: Throttle Body Connector End View
GCWD1025423Courtesy of CHRYSLER

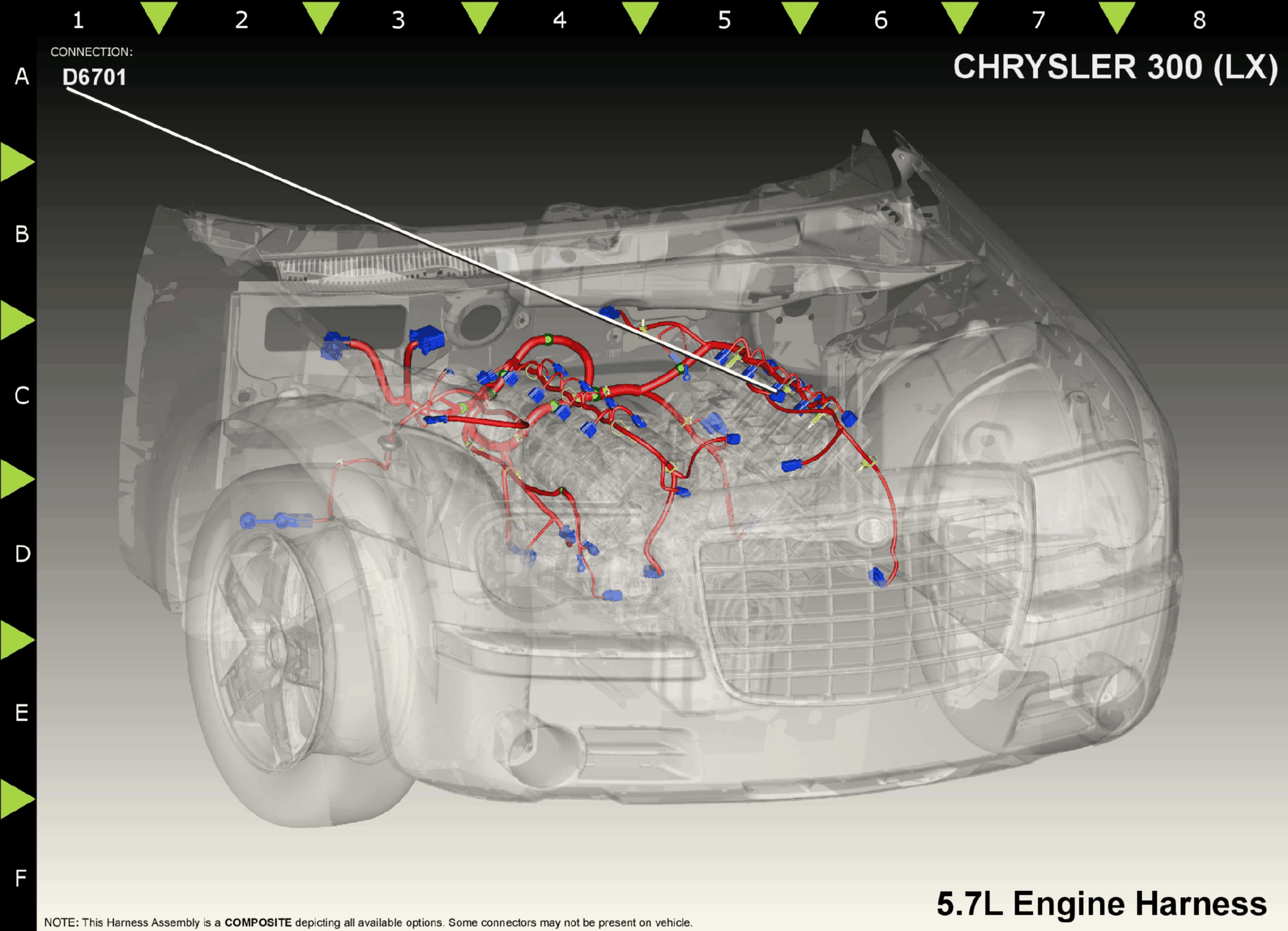

Fig 2: Throttle Body Component Location
GCWD1017806Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K22 BR 18 TP 1 SIGNAL N/A
2 F855 PK 18 5 VOLT SUPPLY N/A
3 K124 DB 18 ETC MOTOR (+) N/A
4 K122 BR 18 TP 2 SIGNAL N/A
5 K126 DB 18 ETC MOTOR (-) N/A
6 K922 BR 18 TP SENSOR RETURN N/A
