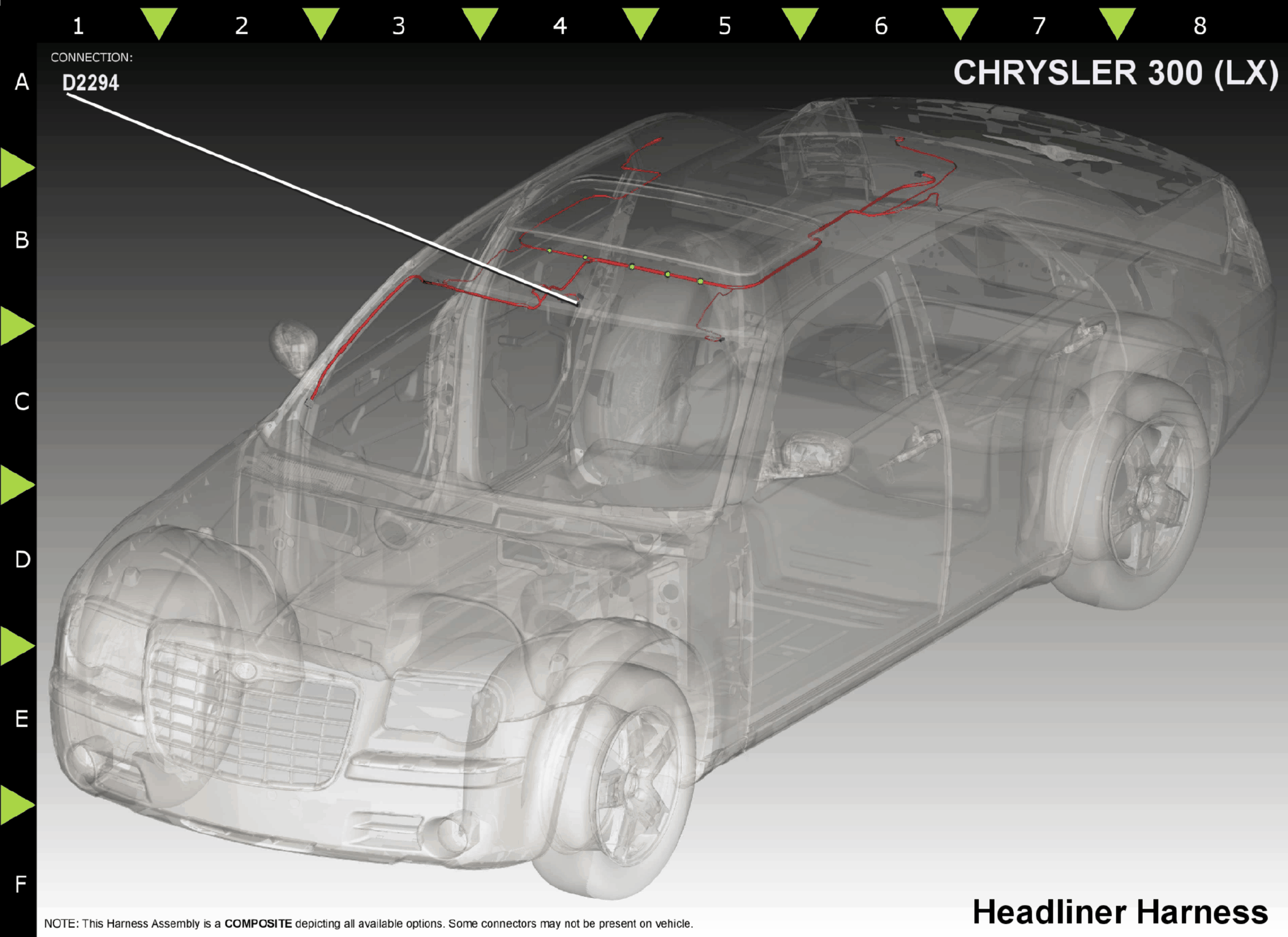

Switch-Sunroof (D2294)
Harness-Family: Headliner
Color: BLACK
Gender: FEMALE
Part Number: 34179043
Part Description: METRI-PACK 150 UNSEALED Female CONNECTOR
Connector No: D2294
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| A | Q4 | OR | 22 | SUNROOF VENT SWITCH SENSE | N/A |
| B | Q6 | OR | 22 | SUNROOF SWITCH SUPPLY | N/A |
| C | Q5 | OR | 22 | SUNROOF CLOSE SWITCH SENSE | N/A |
| D | Q3 | OR | 22 | SUNROOF OPEN SWITCH SENSE | N/A |
